Throttle Body: Service and Repair

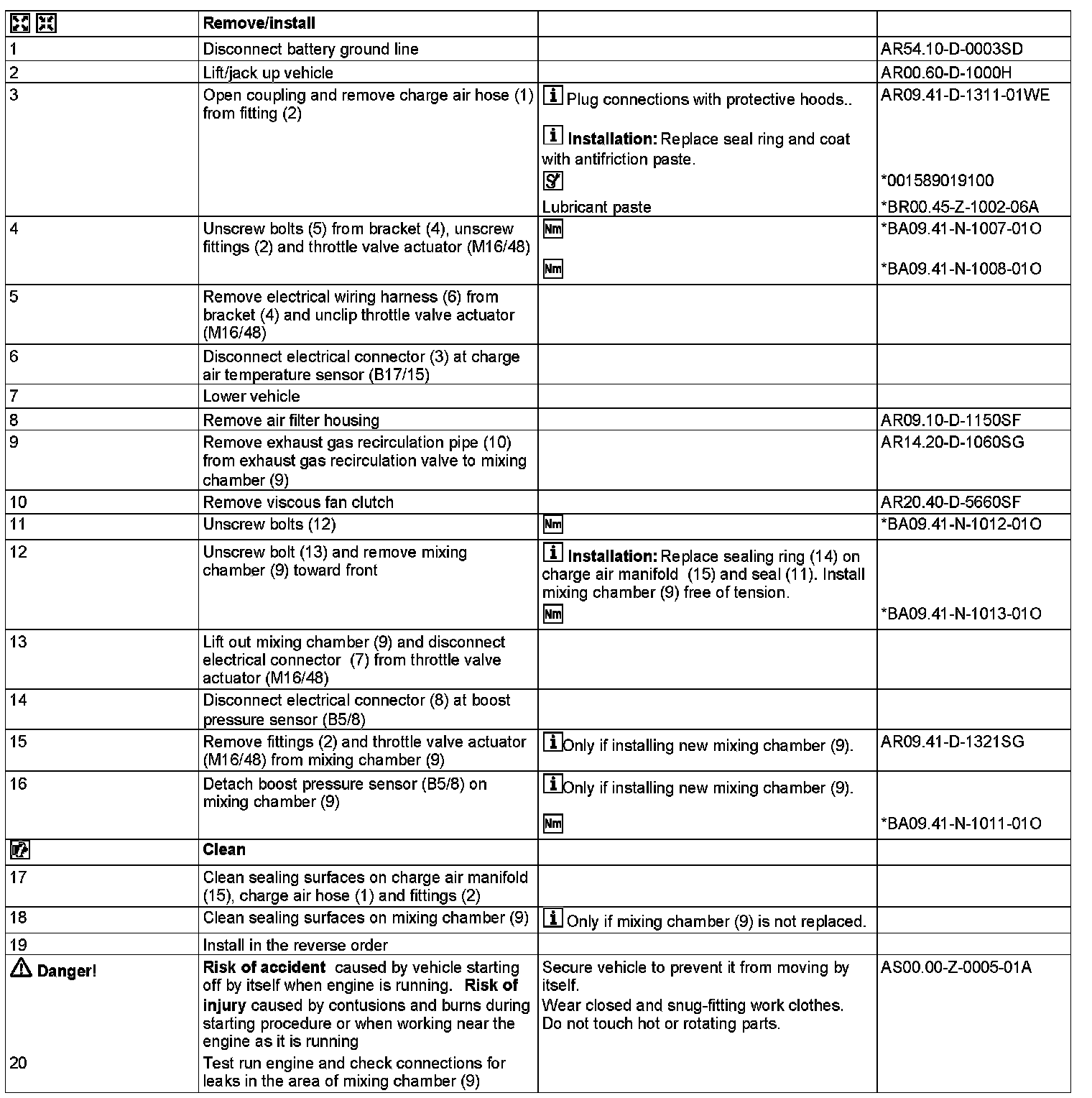

AR09.20-D-1320SG Remove/install Mixing Chamber

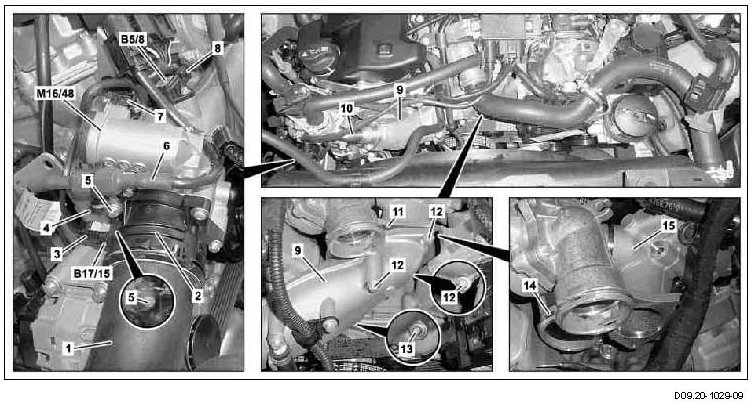

1 Charge air hose
2 Fitting
3 Electrical connector
4 Bracket
5 Screw
6 Wiring harness
7 Electrical connector
8 Electrical connector
9 Mixing chamber
10 Exhaust gas recirculation pipe
11 Gasket
12 Screw
13 Screw
14 Sealing ring
15 Charge air manifold
B5/8 Boost pressure sensor
B17/15 Charge air temperature sensor
M16/48 Throttle valve positioner











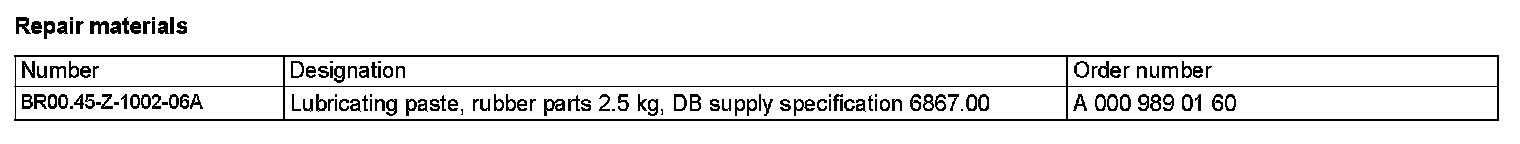

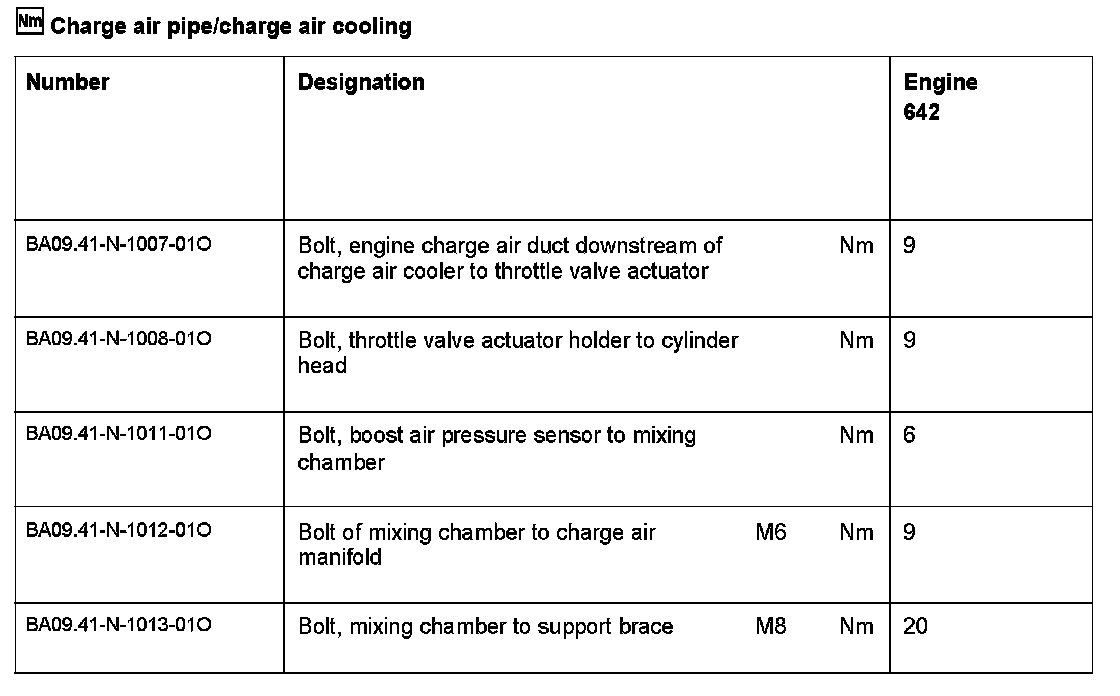

001 589 01 91 00, Set of protective covers
