Removal and Replacement

AR09.10-D-8030SF Remove/install Air Intake Hose


Air intake hose downstream of air filter

Shown on engine 642.992







1 Air intake hose
2 Clip
3 Venting hose
4 Sealing ring
R39/1 Vent line heater element (on engine 642.992/993)
R39/4 Vent line heater element (on engine 642.896/898)

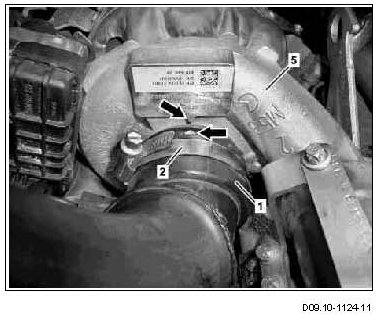

1 Air intake hose
2 Clip
5 Turbocharger







001 589 01 91 00, Set of protective covers
