Procedures

AR09.10-D-8030-01SD Detach/attach Air Intake Hose

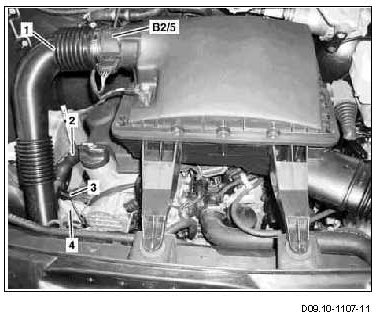

1 Remove intake air hose downstream of air filter (1) at hot film mass air flow sensor (B2/5)
2 Detach electrical connector (3).
3 Detach crankcase ventilation hose (2)
4 Remove intake air hose downstream of air filter (1) on turbocharger (4)
Installation: Before tightening clamp on turbocharger (4) the intake air hose downstream of air filter (1) must be put on hot film mass air flow sensor (B2/5).
5 Remove intake air hose downstream of air filter (1).
6 Install in the reverse order.
