AR47.20-D-7000SD Remove/Install Fuel Pump and Fuel Level Sensor

AR47.20-D-7000SD Remove/install Fuel Pump And Fuel Level Sensor


Shown with code (H12) Auxiliary heater (hot water)







1 Fuel tank
2 Electrical connector
3 Fuel return line
4 Fuel feed line
5 Auxiliary heater fuel line (only for code (H12) Auxiliary heater (hot water))
6 Union nut
M3/5 Fuel pump with fuel tank sensor







1 Fuel tank
6 Union nut
7 Marking
8 Marking
9 Marking
10 Marking
M3/5 Fuel pump with fuel tank sensor











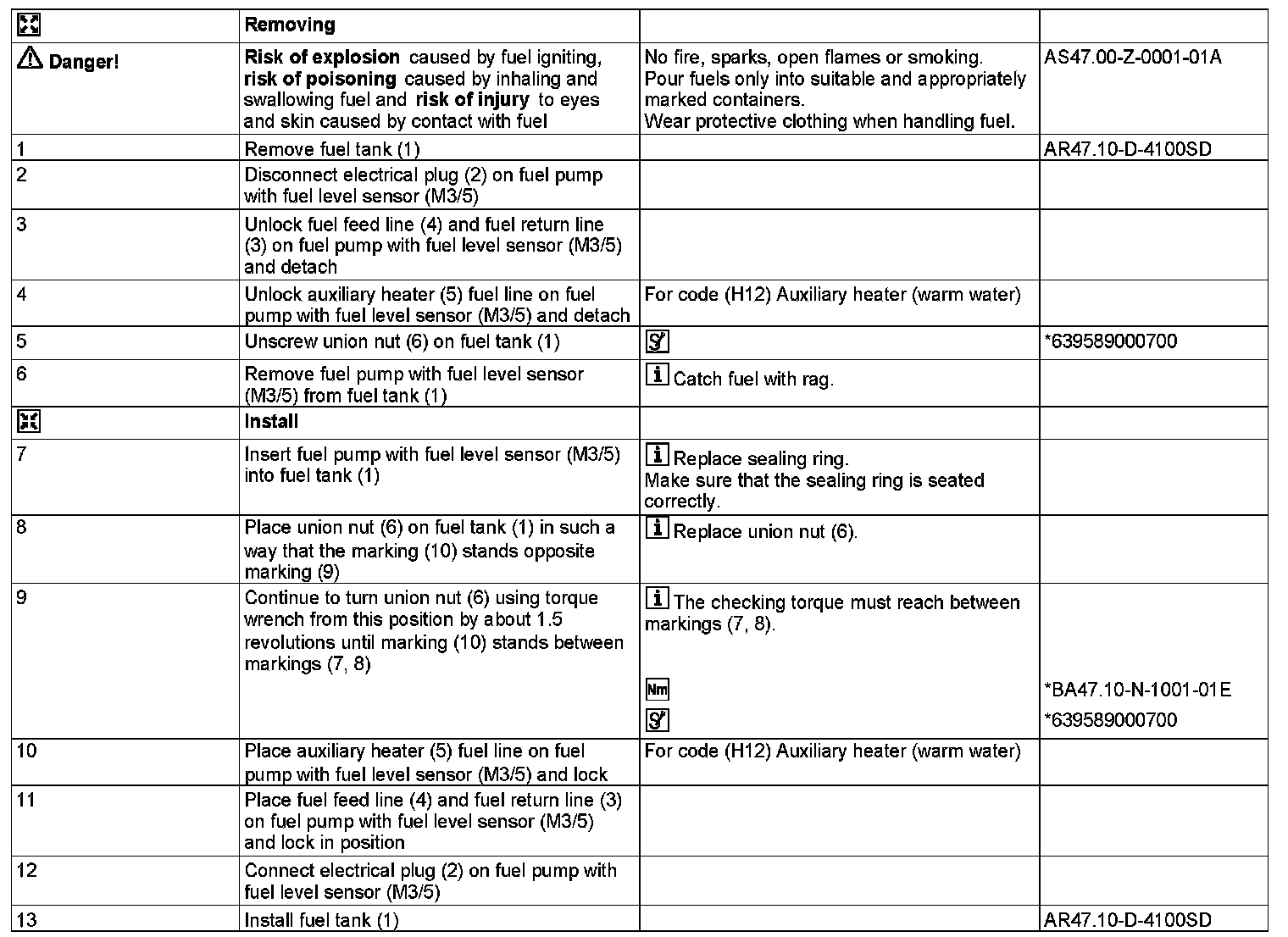

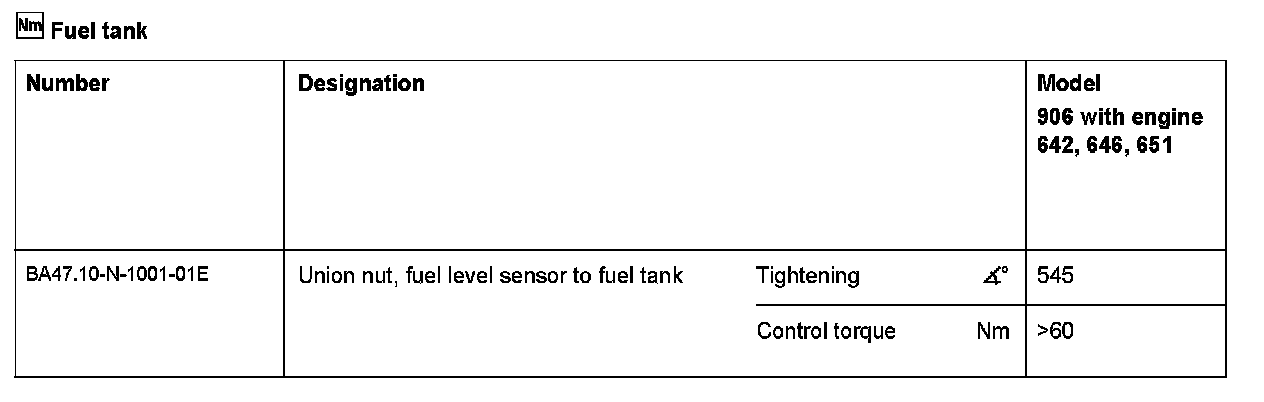

639 589 00 07 00, Hook wrench
