AR14.20-D-1060SD Remove/Install Exhaust Gas Recirculation Pipe

AR14.20-D-1060SD Remove/Install Exhaust Gas Recirculation Pipe


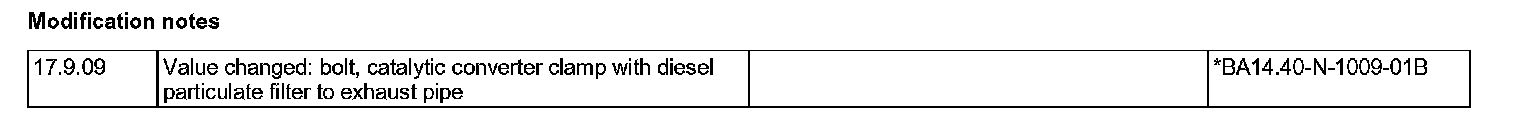

Exhaust collect pipe to exhaust gas recirculation bypass flap





Shown on engine 642.896

1 Catalytic converter exhaust pipe
2 Exhaust collector pipe
3 Rear exhaust gas recirculation pipe
4 Clip
5 Clip
6 Exhaust gas recirculation
7 Bracket
8 Screw
9 Exhaust pipe
10 Gasket
11 Bracket
12 Pressure lines
13 Electrical connector
14 Bracket

B28/20 Diesel particulate filter differential pressure sensor
B85/3x1 Oxygen sensor connector

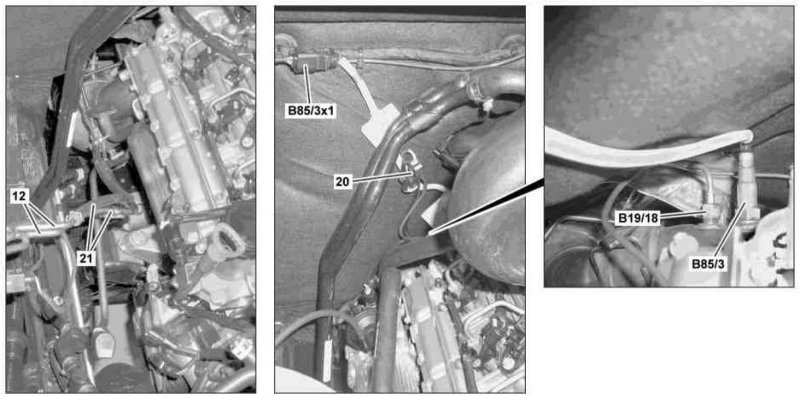

Shown on engine 642.898

12 Pressure lines
20 Electrical connector (engine 642.898)
21 Pressure hoses

B19/18 Temperature sensor upstream of CAT (Engine 642.898)
B85/3 Oxygen sensor
B85/3x1 Oxygen sensor connector

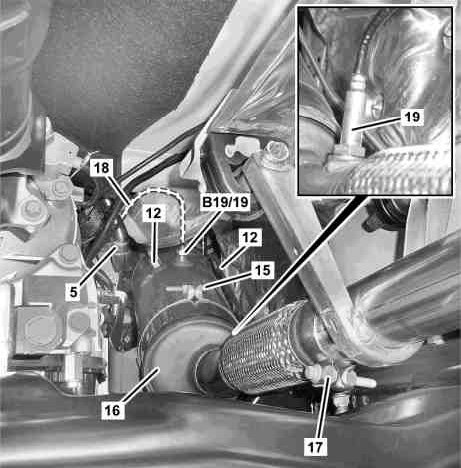

Shown on engine 642.898

5 Clip
12 High pressure line
15 Tensioning strap
16 Catalytic converter with diesel particulate filter
17 Clip
18 Electrical line
19 NOx sensor (engine 642.898)

B19/19 Temperature sensor upstream of diesel particulate filter


























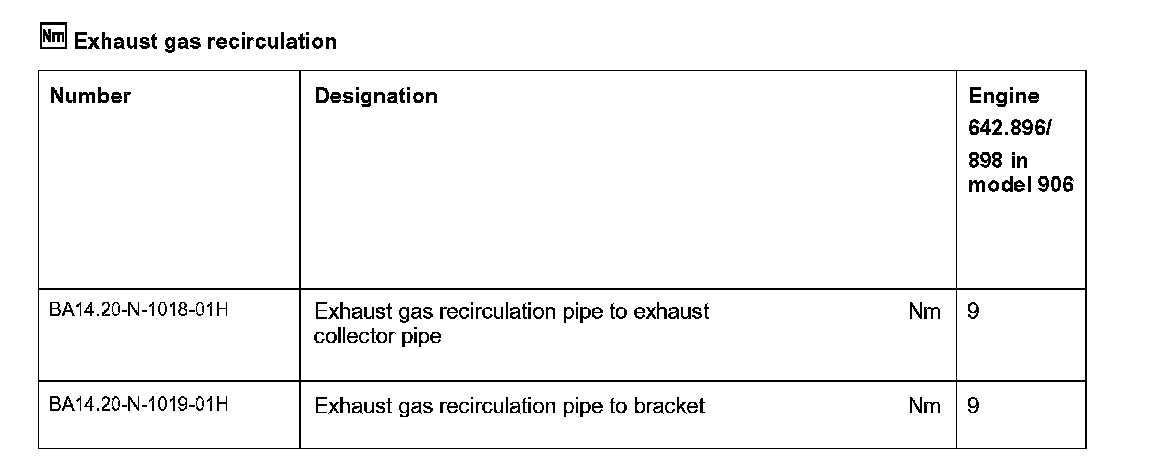

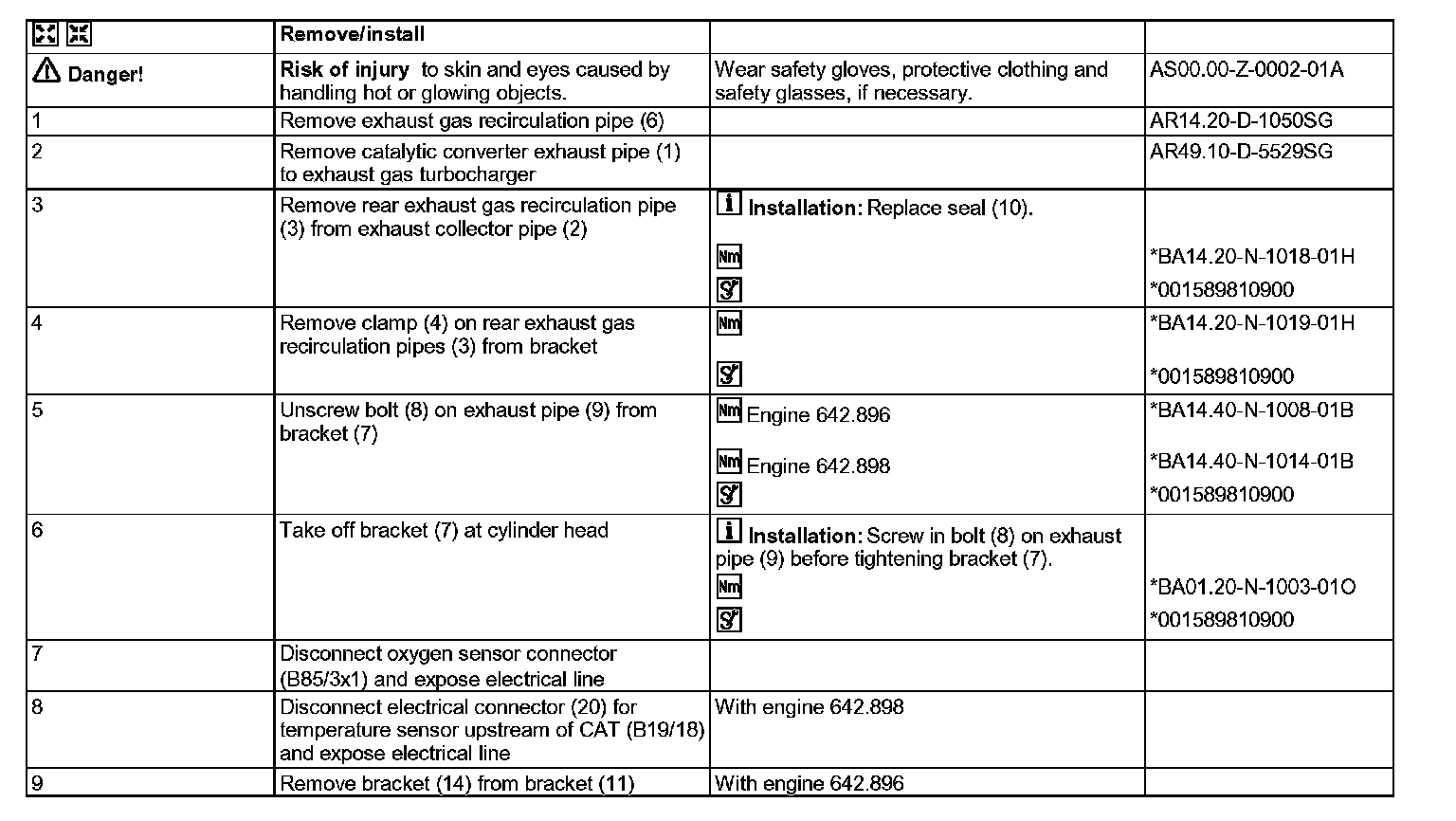

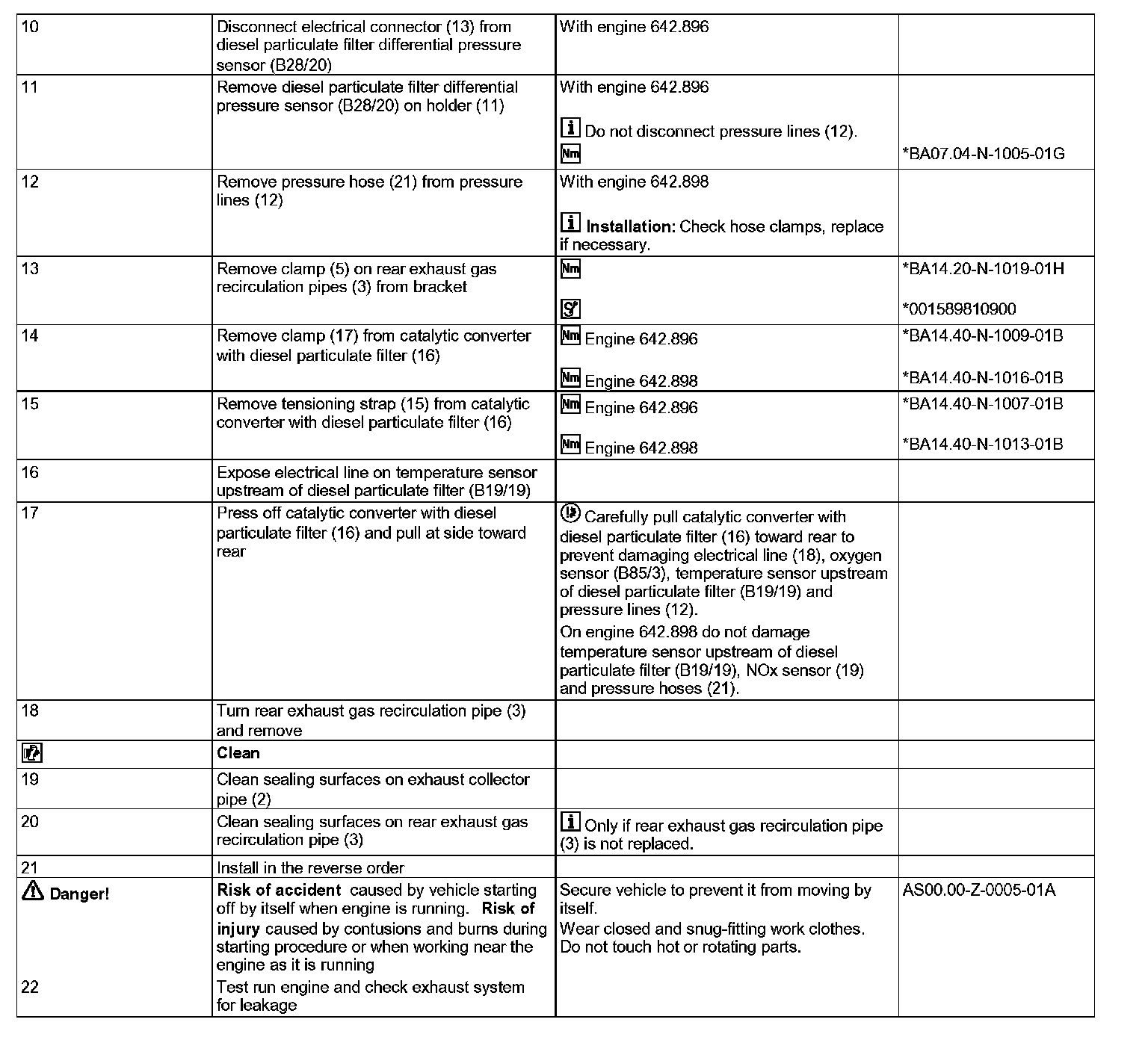

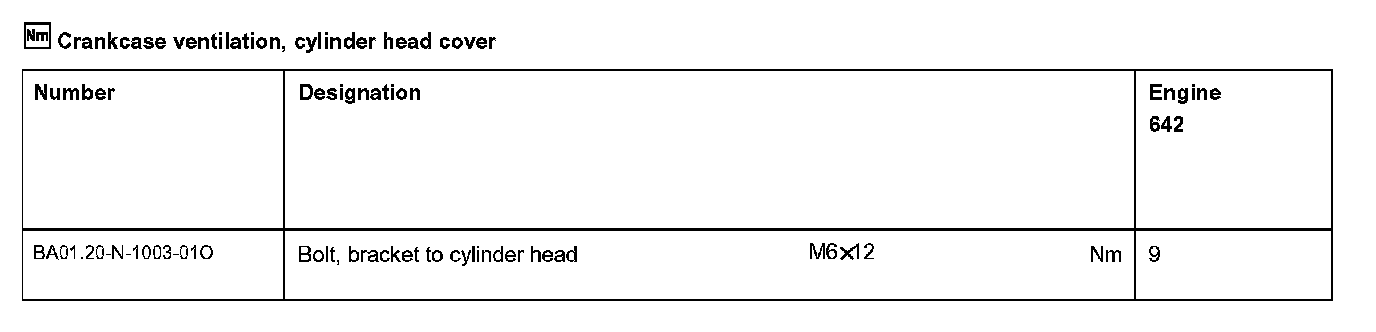

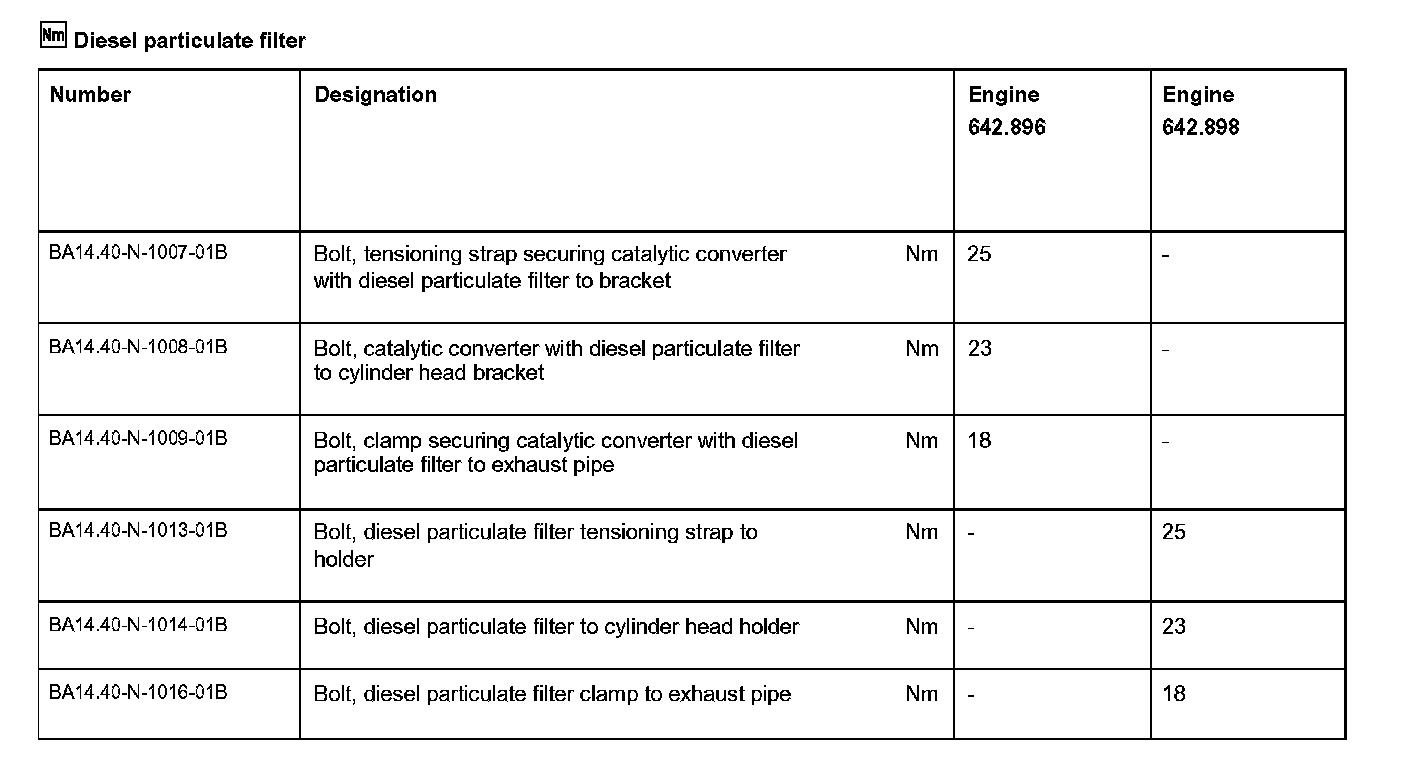

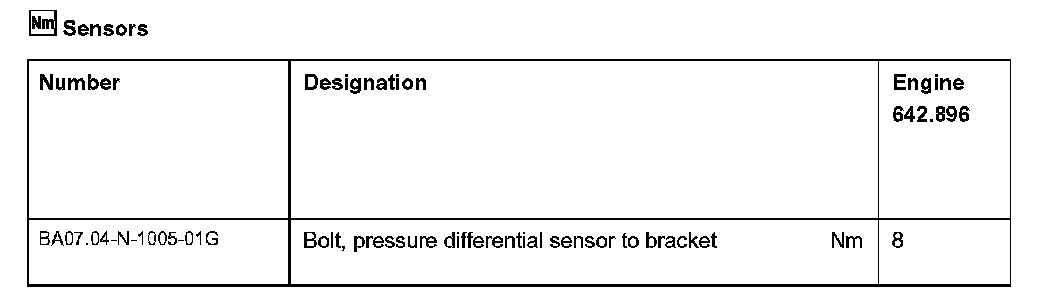

001 589 81 09 00
Flexible head wrench set
