EGR Cooler: Service and Repair

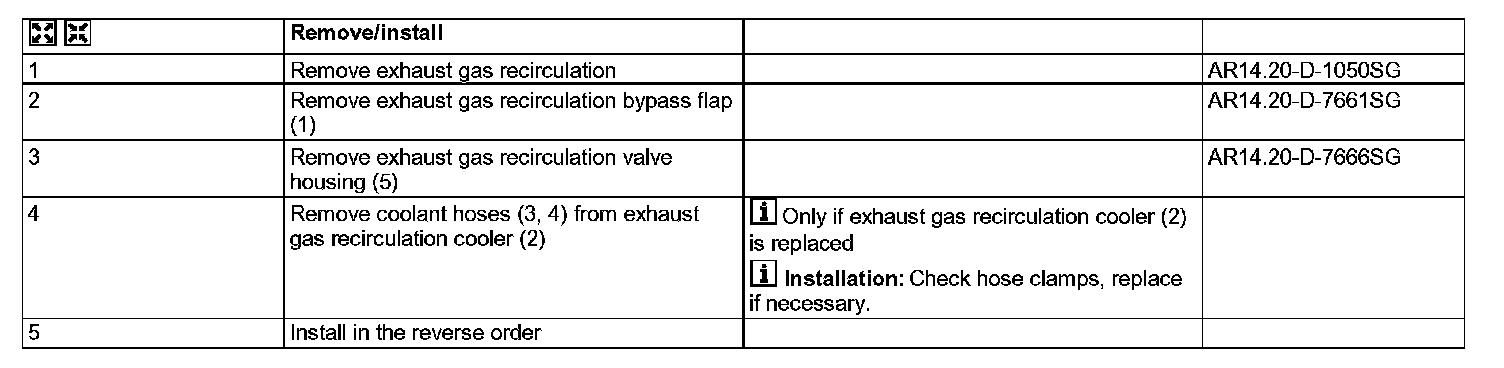

AR14.20-D-7665SG Remove/Install Exhaust Gas Recirculation Cooler

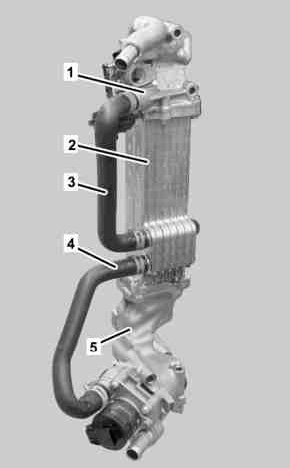

1 Exhaust gas recirculation bypass flap
2 Exhaust gas recirculation cooler
3 Coolant hose
4 Coolant hose
5 Exhaust gas recirculation valve housing
