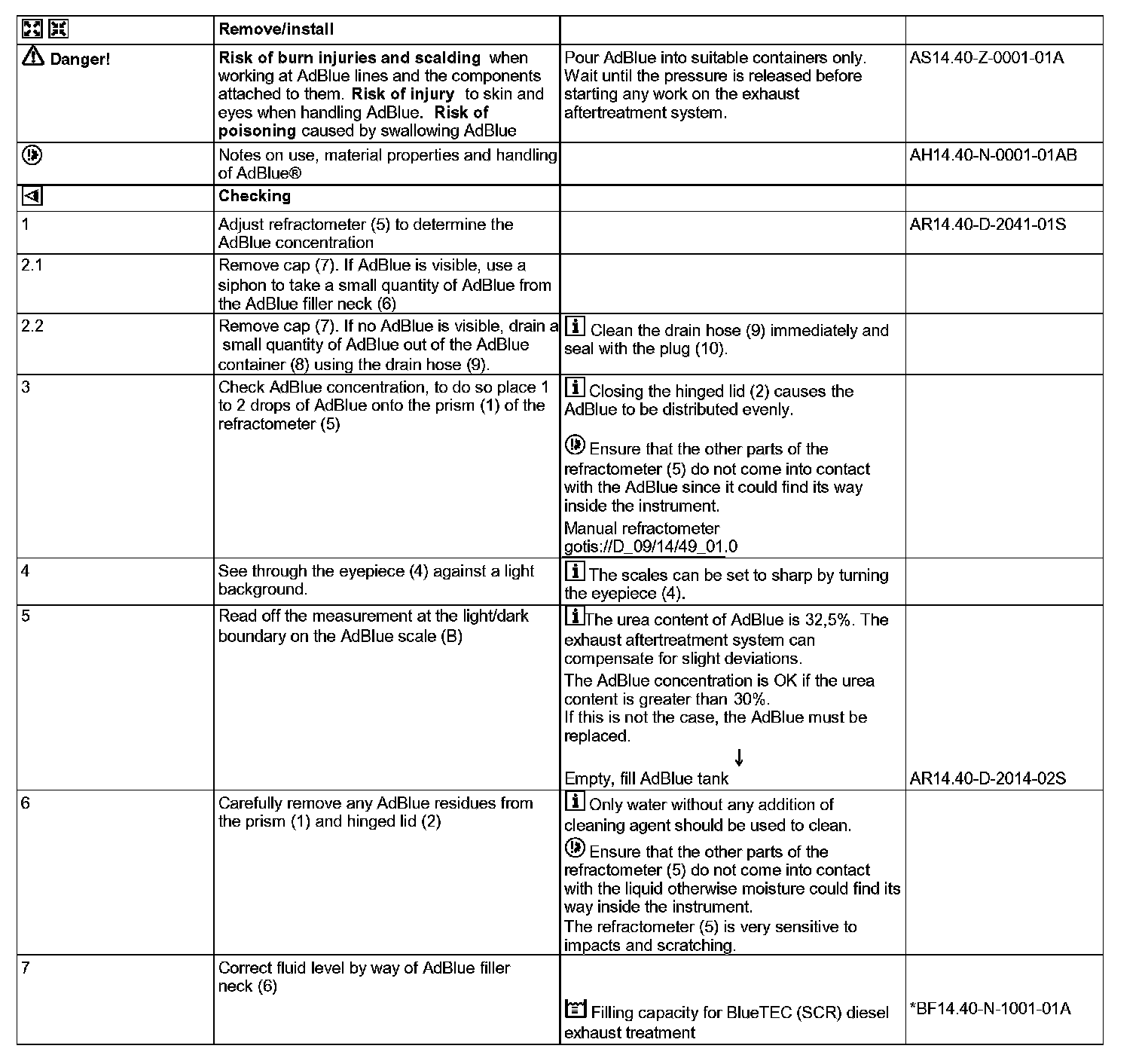

AP14.40-D-1411A Adblue Container - Check/Correct Fluid Level

AP14.40-D-1411A AdBlue Container - Check/Correct Fluid Level
ENGINE 642 in MODEL 906 with CODE (ZU7) National version for Canada
ENGINE 642.898 in MODEL 906 with CODE (ZU8) National version for USA

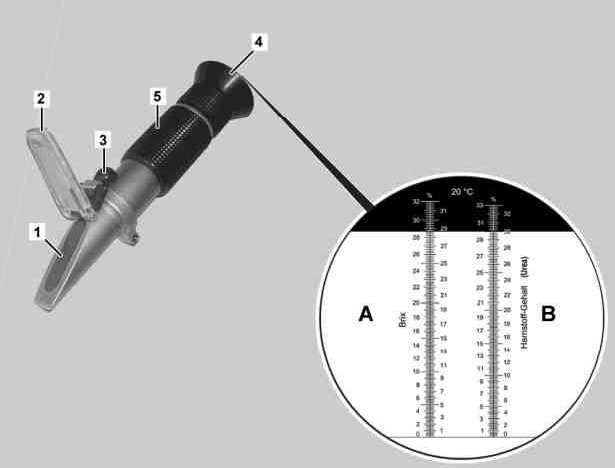

1 Prism
2 Hinged lid
3 Adjustment screw
4 Eyepiece
5 Refractometer

A Brix scale
B AdBlue scale








6 AdBlue filler neck
7 Cap
8 AdBlue tank
9 Drain hose
10 Cap
