AR14.40-D-2014SB Remove/Install Adblue Tank

AR14.40-D-2014SB Remove/Install AdBlue Tank

- with CODE (KP2) AdBlue tank, 12 l, in engine compartment

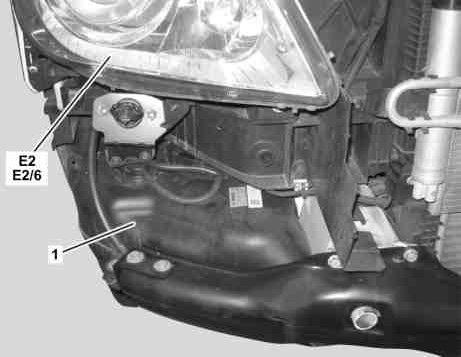

Shown on vehicle with code (LG1) Bi-xenon headlamp with corner-illuminating fog lamps

1 AdBlue(R) tank

E2 Right lamp unit (without code (LG0) Bi-xenon headlamp or without code (LG1) Bi-xenon headlamp with cornering lights)
E2/6 Right xenon lamp unit (with code (LG0) Bi-xenon headlamp or with code (LG1) Bi-xenon headlamp with cornering lights)

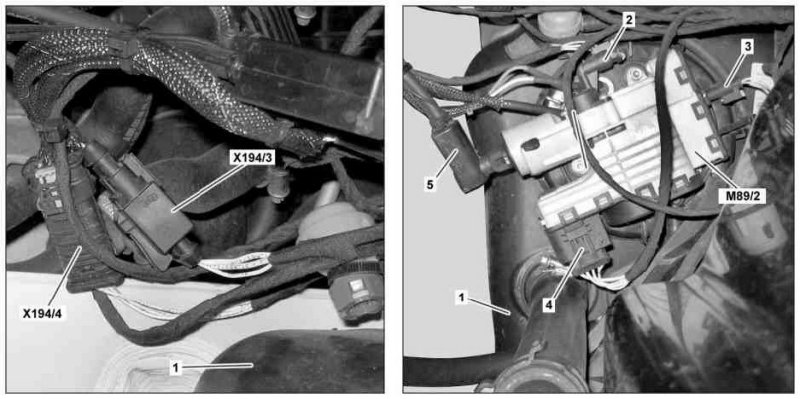

1 AdBlue(R) tank
2 Electrical connector
3 Electrical connector
4 Electrical connector
5 AdBlue(R) injection line

M89/2 Front AdBlue(R) delivery pump
X194/3 AdBlue(R) tank connector 1
X194/4 AdBlue(R) tank connector 2

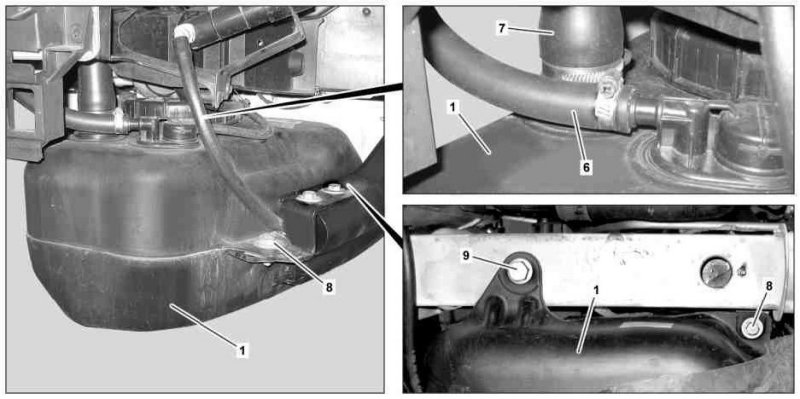

1 AdBlue(R) tank
6 AdBlue(R) bleed line
7 AdBlue(R) filler line
8 Bolt
9 Bolt














129 589 00 91 00
Set of stop plugs
