AR14.40-D-2014SA Remove/Install Adblue Tank

AR14.40-D-2014SA Remove/Install AdBlue Tank

- except CODE (KP2) AdBlue tank, 12 l, in engine compartment

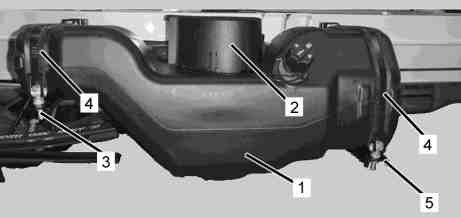

1 AdBlue(R) tank
2 Cap
3 Nut
4 Tensioning strap
5 Mounting console

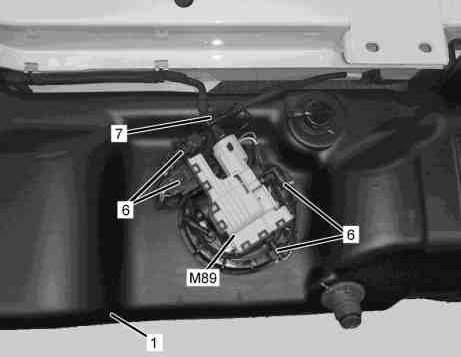

1 AdBlue(R) tank
6 Electrical connectors
7 AdBlue(R) injection line

M89 AdBlue(R) delivery pump














129 589 00 91 00
Set of stop plugs
