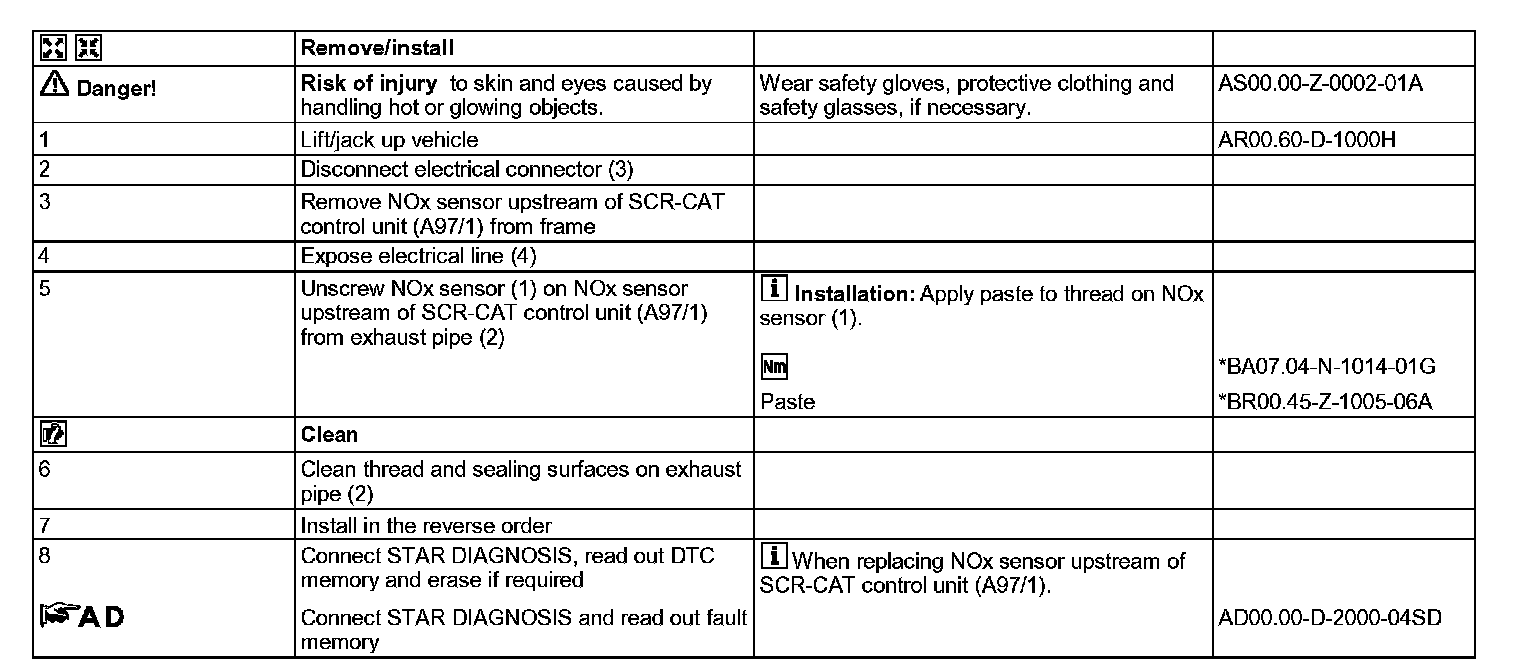

AR14.40-D-2038S Remove/Install NOx Sensor With Controller Unit




AR14.40-D-2038S Remove/Install NOx Sensor With Controller Unit

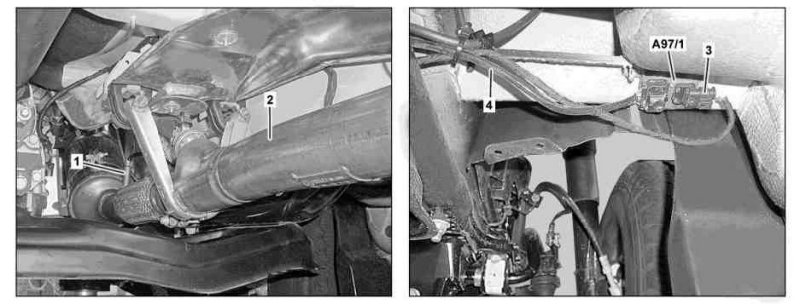

upstream of catalytic converter





1 NOx sensor
2 Exhaust pipe
3 Electrical connector
4 Electrical line

A97/1 Control unit for NOx sensor upstream of SCR-CAT
