Central Electronics Box: Testing and Inspection

AR54.21-S-0025-01JC Code Central Electronics Control Unit
- with CODE (ZO1) Camper James Cook Compact

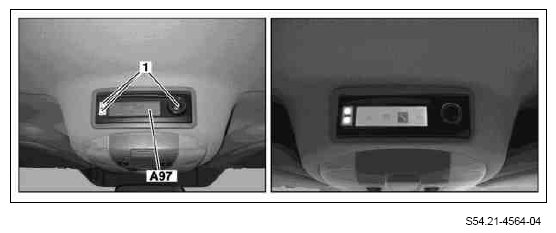

1 Call up service menu of central operating unit (ZBE) (A97).
For this purpose keep all control buttons (1) pressed for approx.. 5 s.

2 Call up menu item "Vehicle configuration".

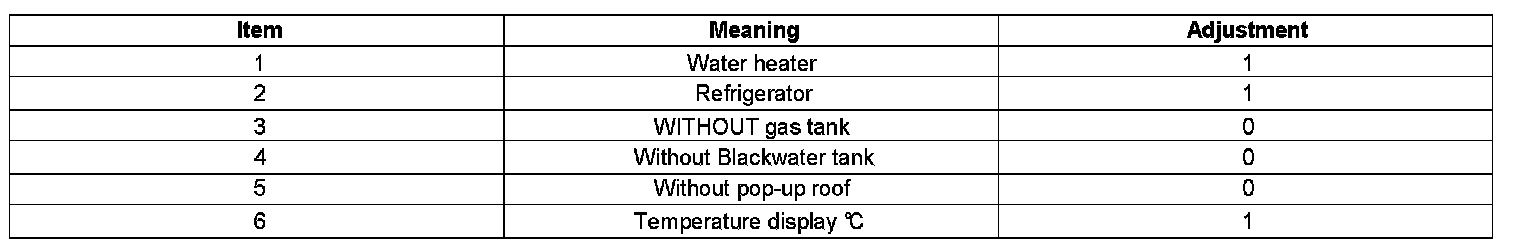

3 Central electronics control unit with vehicle version James Cook Europe as per the table below.
4 Exit the service menu.
