AR35.20-D-0310-04A Remove/Put on Wheel Hub

AR35.20-D-0310-04A Remove/Put on Wheel Hub
- REAR AXLE 741.413 /414 /416 /420 in MODEL 906
- REAR AXLE 741.429 in MODEL 906.153/155












309 589 01 07 00
Claw-type wrench





906 589 00 07 00
Claw-type wrench











Remove wheel hub

1 Bend up locking plate (1).
2 Unscrew outer slotted nut (2) using.

Model 667, 904, 690.6 309 589 01 07 00

Model 906 906 589 00 07 00








3 Remove locking plate (1).
4 Unscrew inner slotted nut using
5 Remove thrust plate (3).
6 Remove wheel hub (4) with outer wheel bearing (5).








Put on wheel hub

7 Put wheel hub (4) onto axle tube.
8 Insert outer wheel bearing (5).

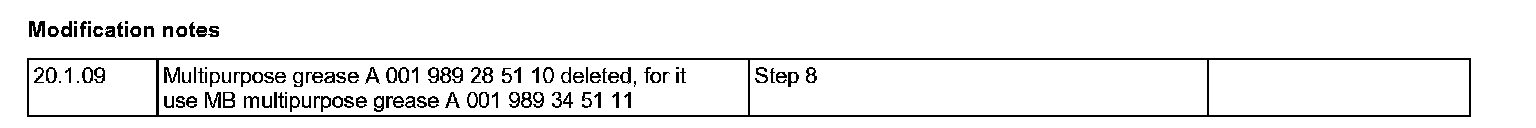

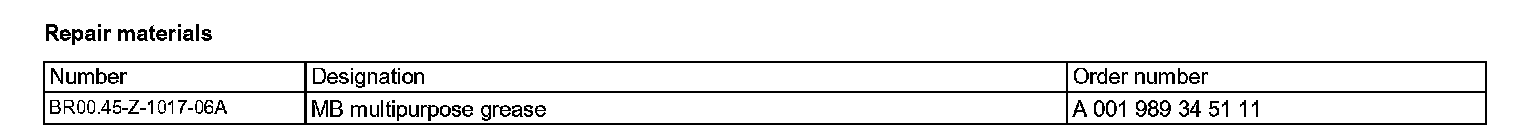

Grease outer wheel bearing (5) beforehand.

9 Put on thrust plate (3).





10 Screw on inner slotted nut (2).

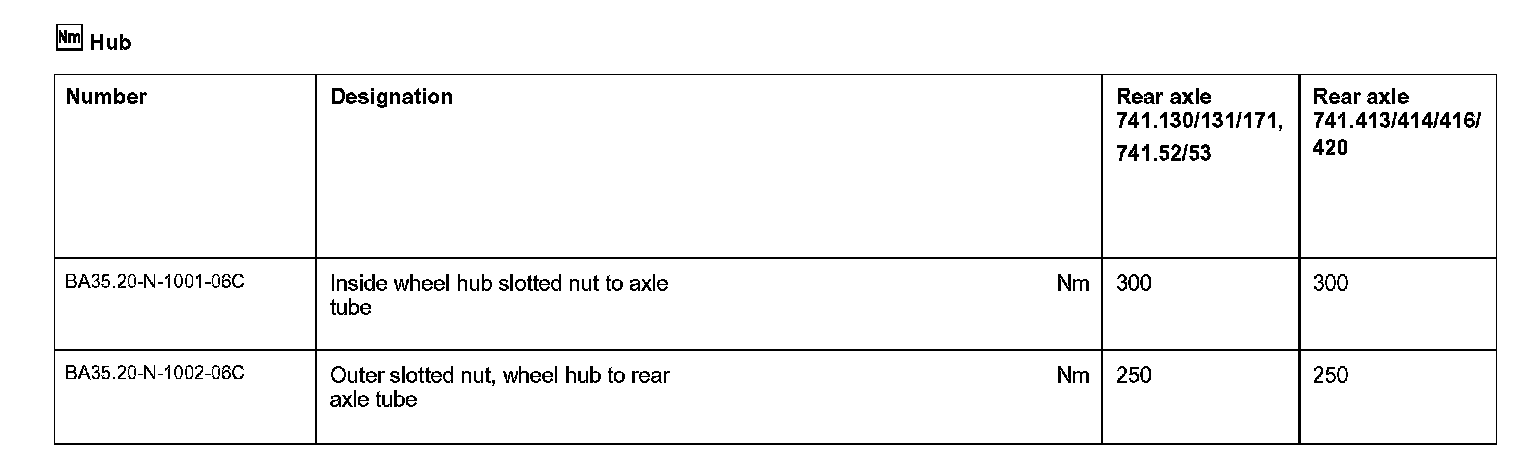

Tighten inner slotted nut (2) to the specified torque whilst constantly turning the wheel hub. Turn back inner slotted nut (2) and then tighten until it abuts the thrust plate with zero clearance. Then turn back 1/8 revolution.





11 Fit locking plate (1).

Replace locking plate (1).

12 Tighten outer slotted nut to the specified torque.
