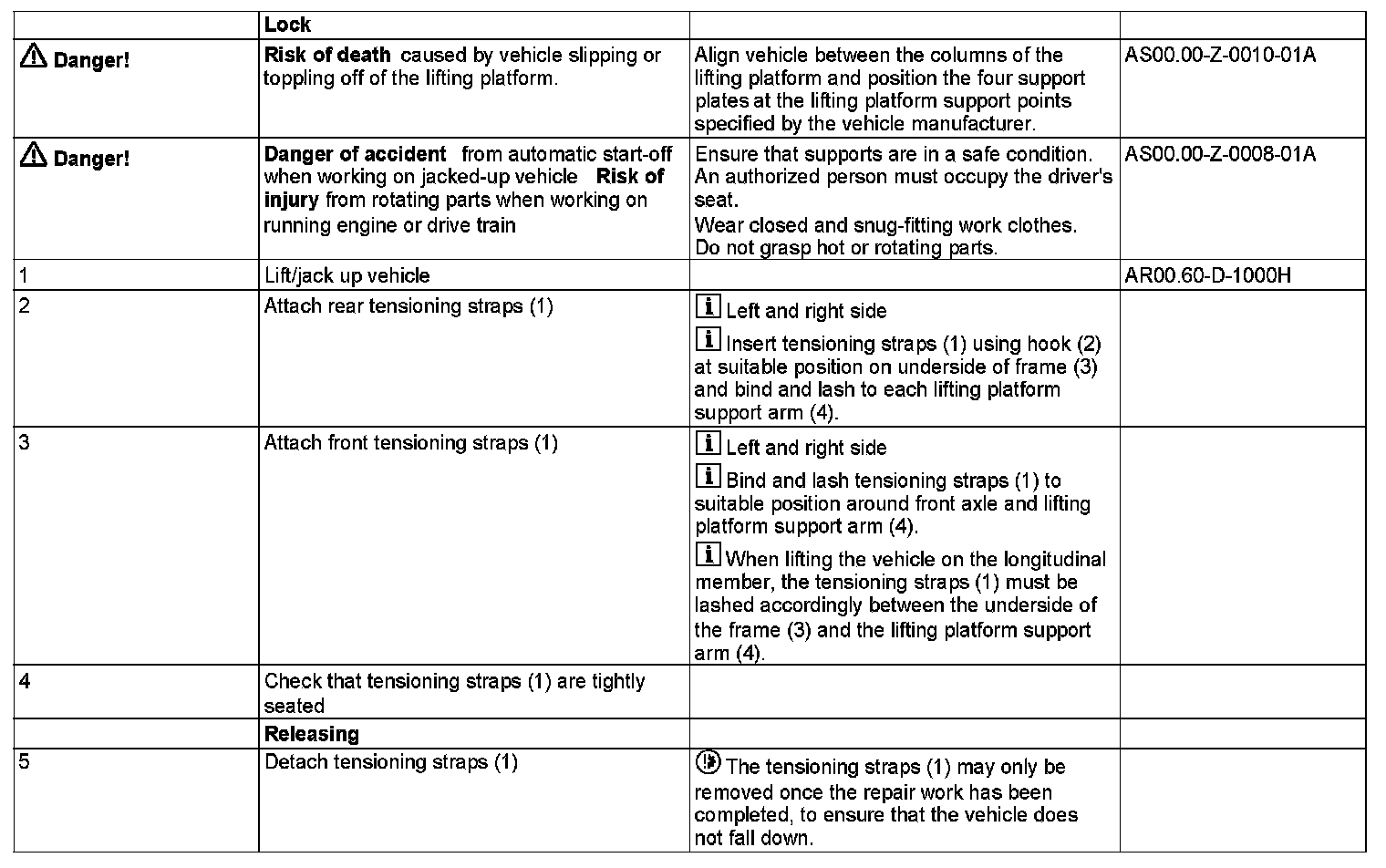

AR00.60-D-0100H Secure Vehicle on Lifting Platform




AR00.60-D-0100H Secure Vehicle On Lifting Platform

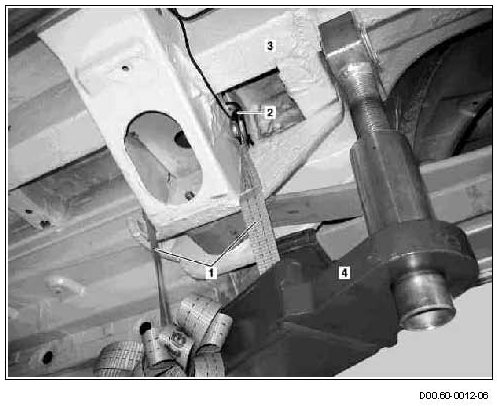

1 Tensioning straps
2 Hook
3 Frame underside
4 Lifting platform support arm
