AR13.22-D-1202HD Remove/Install Poly-V Belt

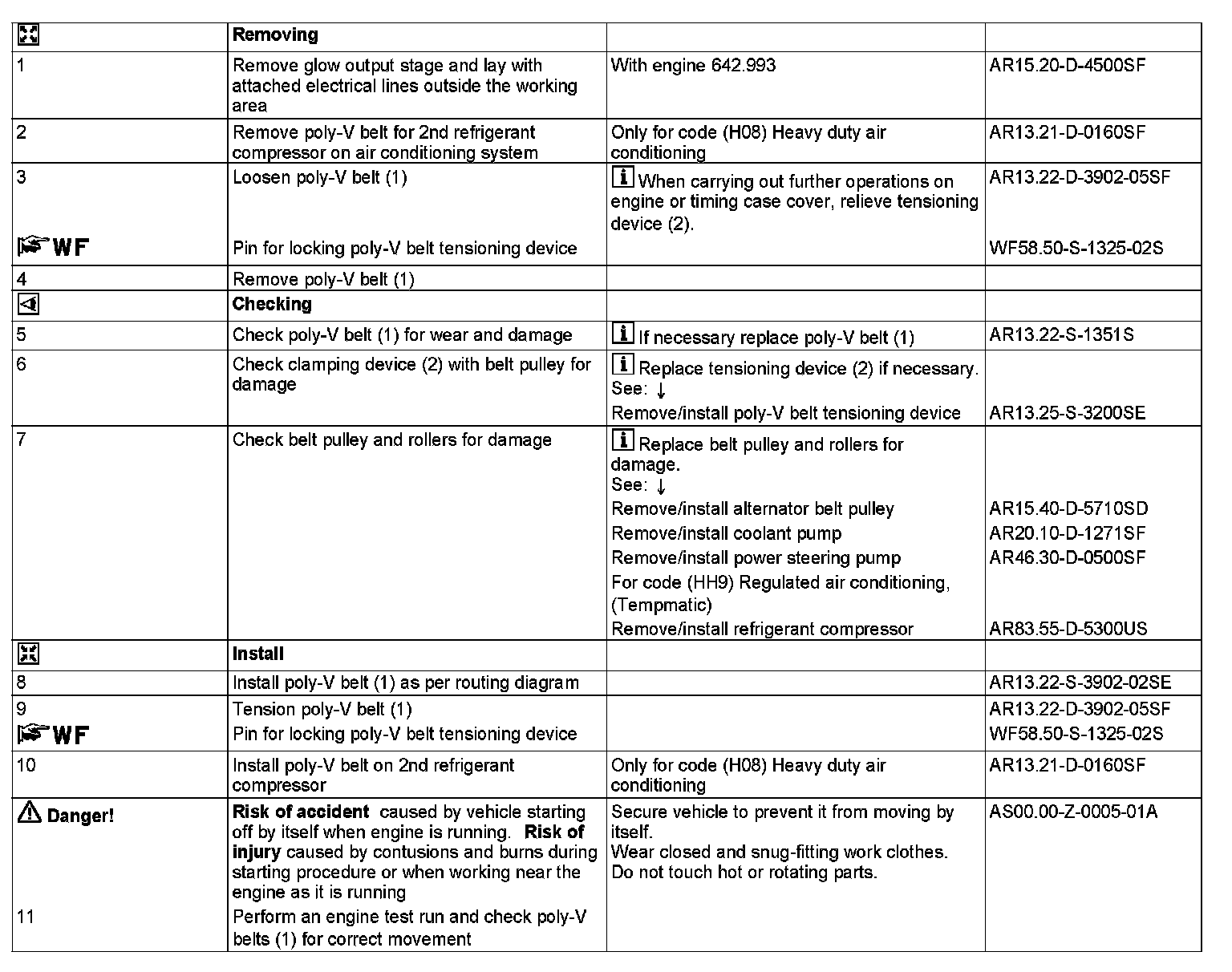

AR13.22-D-1202HD Remove/install Poly-V Belt

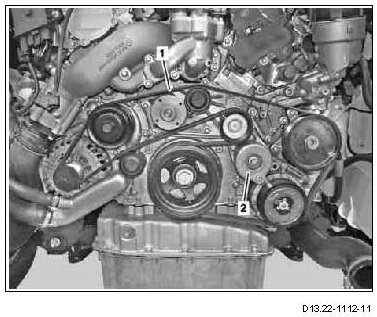

Shown on vehicles with engine 642.992 and code (HH9) Regulated air conditioning, (Tempmatic)







1 Poly-V belt
2 Tensioning device
