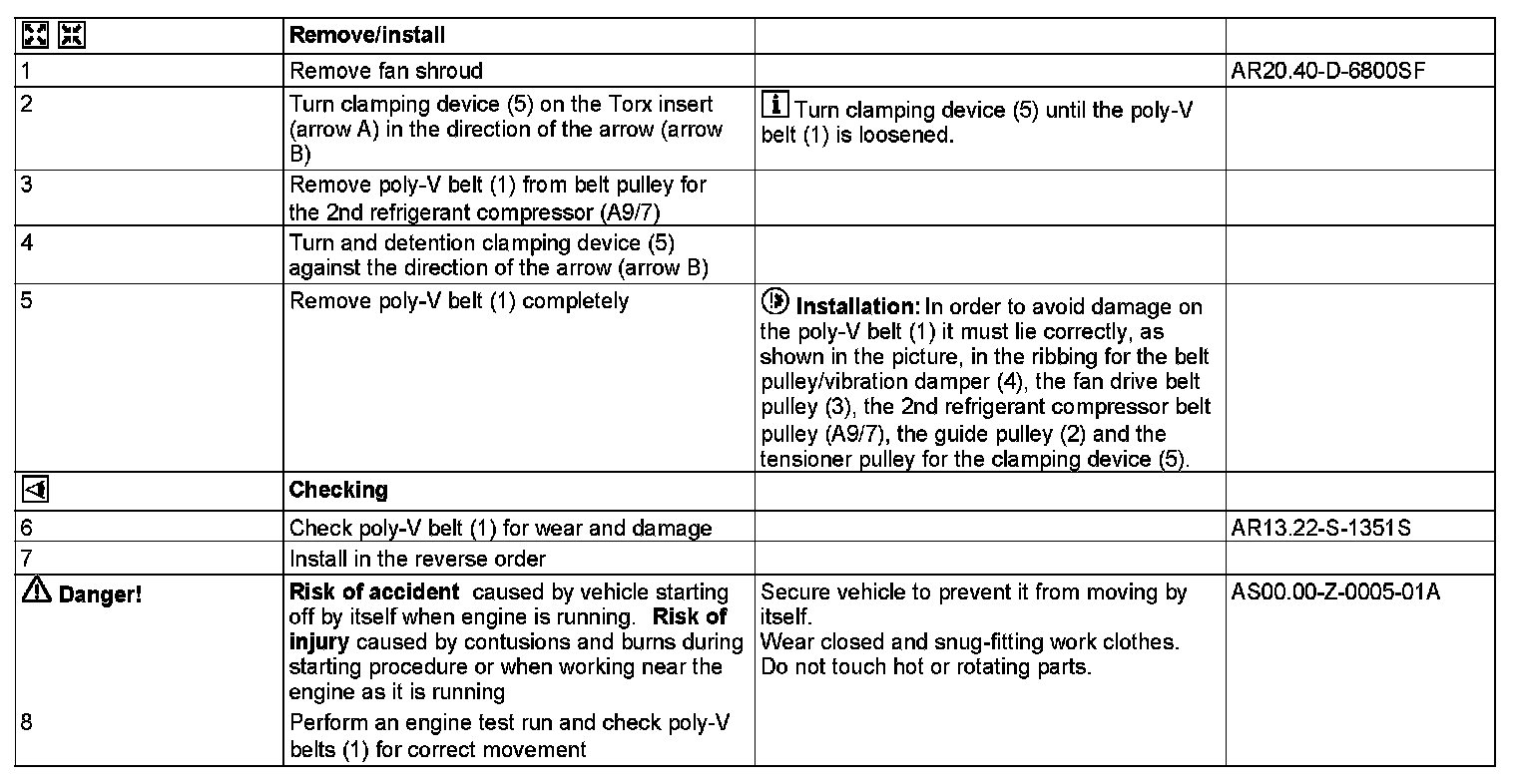

AR13.21-D-0160SF Remove V-Belt of Refrigeration Compressor of Air Conditioning System, Install

AR13.21-D-0160SF Remove V-belt Of Refrigeration Compressor Of Air Conditioning System, Install

- with CODE (H08) High-performance air conditioning for 2nd refrigerant compressor

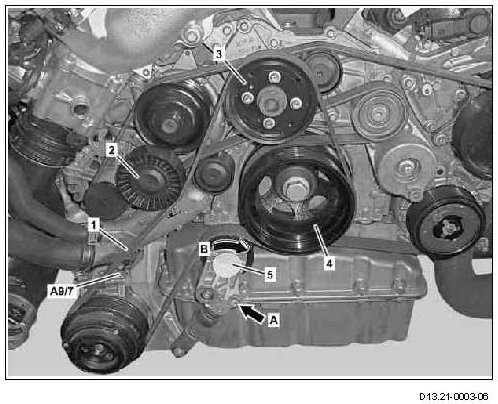

1 Poly-V-belt
2 Pulley
3 Belt pulley for fan drive
4 Belt pulley/vibration damper
5 Tensioning device
A9/7 2nd refrigerant compressor
