AR40.30-D-0402-02HB Carry Out Distance and Comparison Measurements on Rear Axle

AR40.30-D-0402-02HB Carry Out Distance and Comparison Measurements on Rear Axle

















The beam trammel for measuring of the vehicle frame is made up of the following tools:
- Contact arm (01)
- Measuring cone (02)
- Measuring TIPS (400 mm) (03)
- Beam trammel (05)

http://gotis.aftersales.mercedes-benz.com

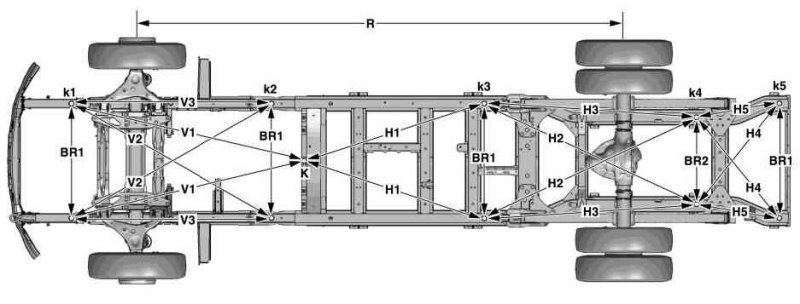

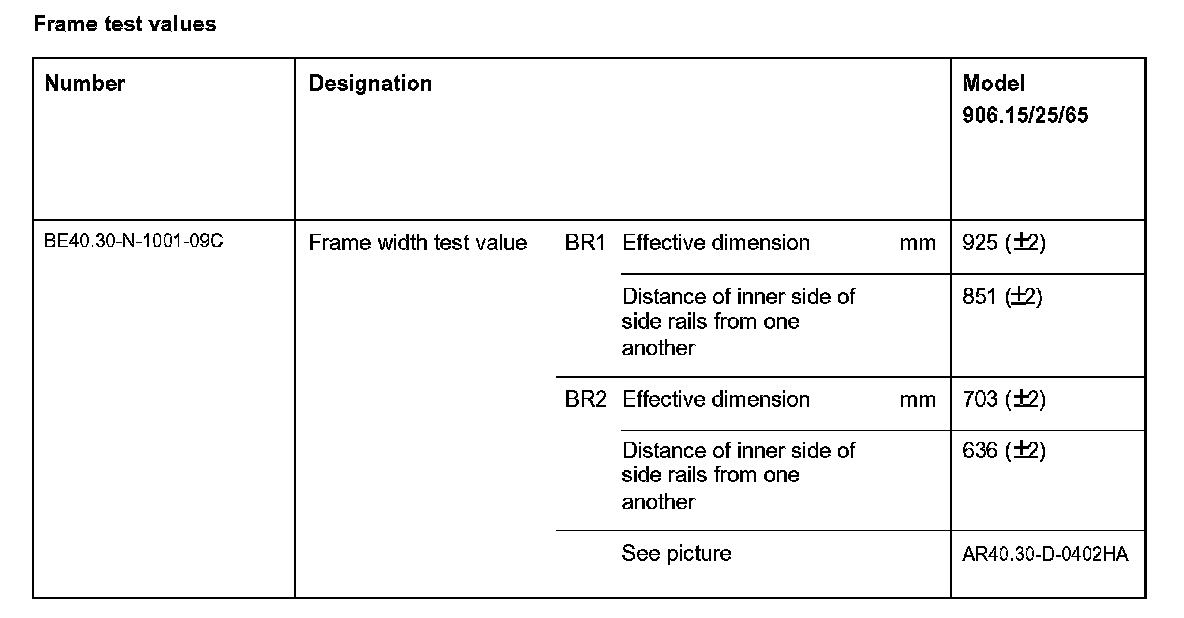

1 Measure reference dimension (H1) from check point (K) to check point (k3) in longitudinal member.

To do so, use contact arm (01) for check point (K). Measure on left and right side in each case. If a screw is not turned to locate the contact arm in the weld nut, Then turn a suitable screw (M10x30) from the interior into the weld nut.








2 Measure reference dimension (H2) from check point (k3) in longitudinal member to check point (k4) in longitudinal member located opposite.

Measure on the left and right side in each case.








3 Measure reference dimension (H3) from check point (k3) in longitudinal member to check point (k4) in longitudinal member.

Measure on the left and right side in each case.





For correct measurement it may be necessary to detach the link rod (2) for the stabilizer bar on the frame.





4 Measure reference dimension (H4) from check point (k4) in longitudinal member to check point (k5) in longitudinal member located opposite.

Measure on the left and right side in each case.





5 Measure reference dimension (H5) from check point (k4) in longitudinal member to check point (k5) in longitudinal member.

Measure on the left and right side in each case.
