SM82.10-D-0007A Replace Headlamps

SM82.10-D-0007A Replace Headlamps
MODEL 906.### 2N as of 306253 up to 520968
MODEL 906.### 2S as of 100535 up to 414364

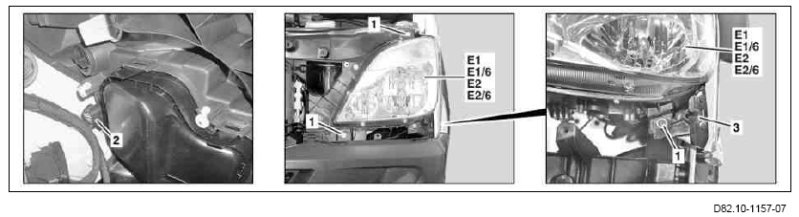

Shown on vehicle without code (LG0) Bi-xenon headlamp or without code (LG1) Bi-xenon headlamp with cornering lights
1 Screw
2 Electrical connector
3 Bracket
E1 Left lamp unit (without code (LG0) Bi-xenon headlamp or without code (LG1) Bi-xenon headlamp with cornering lights)
E1/6 Left xenon lamp unit (with code (LG0) Bi-xenon headlamp or with code (LG1) Bi-xenon headlamp with cornering lights)
E2 Right lamp unit (without code (LG0) Bi-xenon headlamp or without code (LG1) Bi-xenon headlamp with cornering lights)
E2/6 Right xenon lamp unit (with code (LG0) Bi-xenon headlamp or with code (LG1) Bi-xenon headlamp with cornering lights)
