GF82.10-D-4153HA Axle Sensor For Headlamp Range Adjustment, Component Description

GF82.10-D-4153HA Axle Sensor For Headlamp Range Adjustment, Component Description

- with CODE (LG1) Bi-xenon headlamps with cornering illumination
- except CODE (CE2) Rear air suspension Hinterachse

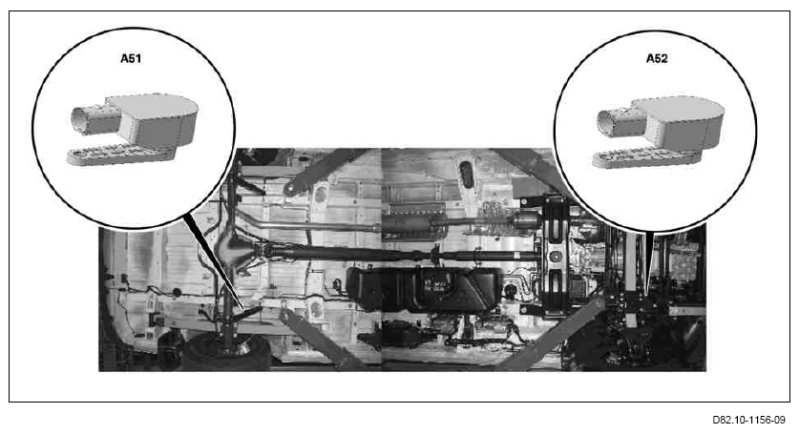

Shown on model 906.1/2
A51 LWR rear axle sensor

Location
On model 906.1/2, the LWR rear axle sensor is located at the cross strut of the vehicle frame at the level of the rear axle.
On model 906.6/7, the LWR rear axle sensor is located at the left longitudinal member of the vehicle frame at the level of the rear axle.

Task
The LWR rear axle sensor informs the LWR control unit (N71) of the changes in the vehicle level, regardless of whether they are due to the load or the rolling motion during acceleration or deceleration.

Function
The LWR rear axle sensor is supplied with voltage ("Circuit 15 ON" and circuit 31) by the LWR control unit. The LWR rear axle sensor determines the changes in the vehicle level and sends a corresponding signal to the LWR control unit via a direct line.
