GF82.10-D-3004HA High Beam Control, Function

GF82.10-D-3004HA High Beam Control, Function

- with CODE (LG1) Bi-xenon headlamps with cornering illumination

High beam function
The high beam function is actuated under the following conditions:
- "Tml. 15R ON"
- Headlamp flasher/high beam switch (S144s2) of combination switch (S144) in "High beam" position
- Rotary light switch (S1) in "Low beam" position

If the high beam is active and the status "terminal 15R ON" changes to "terminal 15R OFF", then high beam switches automatically to low beam.

Headlamp flasher function
The headlamp flasher function is actuated under the following conditions:
- "Tml. 15R ON"
- Headlamp flasher/high beam switch of combination switch in "Headlamp flasher" position

If the low beam (E1/6e2) and the low beam (E2/6e2) are switched on when the headlamp flasher/high beam switch is actuated, the high beam (E1/6e1) and the high beam (E2/6e1) are actuated in addition to the low beam of the left XENON lamp unit (E1/6) and the low beam of the right XENON lamp unit (E2/6) via the xenon control unit (E1/6n1) or via the xenon control unit (E2/6n1).

If the low beams are not switched on, only the high beam of the left XENON lamp unit and the high beam of the right XENON lamp unit are actuated via the respective xenon control unit.

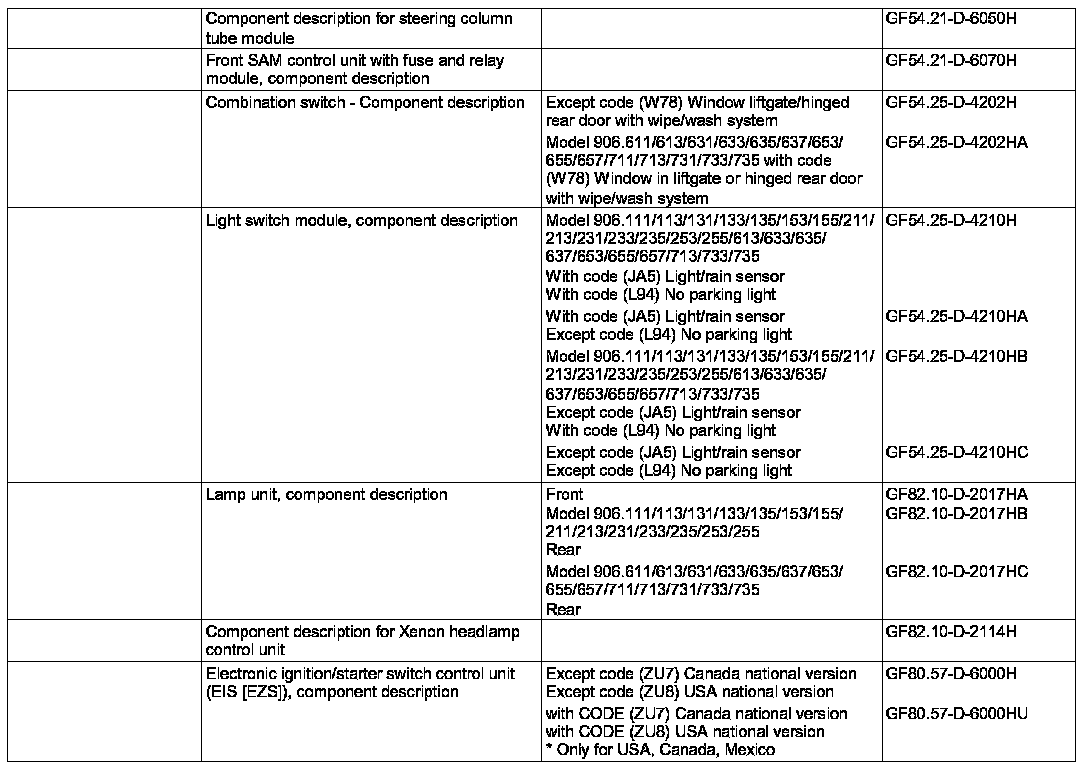

Networking of components
The components of the high beam function or the headlamp flasher function are networked as follows:
- The rotary light switch is read in directly by the SAM control unit (N10).
- The headlamp flasher/high beam switch of the combination switch is read in directly by the MRM control unit (N80).
- The MRM control unit places the signals on the Controller Area Network bus class C (engine compartment) (CAN-C).
- The EIS [EZS] control unit (N73) reads in these signals and places them on the Controller Area Network bus class B (interior) (CAN-B), where they are read in by the SAM control unit.

The following lamps are actuated for the high function or the headlamp flasher function directly by the SAM control unit:
- High beam or low beam of left XENON lamp unit via xenon control unit
- High beam or low beam of right XENON lamp unit via xenon control unit
- Standing light (E1/6e3) of left XENON lamp unit
- Standing light (E2/6e3) of right XENON lamp unit
- Taillight (E3e2) of left taillamp (E3) with model 906.611/613/631/633/635/637/653/655/657/711/713/731/ 733/735 or taillight (E3/6e2) of left taillamp (E3/6) with model 906.111/113/131/133/135/153/155/211/ 213/231/233/235/253/255
- Taillight (E4e2) of right taillamp (E4) with model 906.611/613/631/633/635/637/653/655/657/711/713/731/ 733/735 or taillight (E4/6e2) of right taillamp (E4/6) with model 906.111/113/131/133/135/153/155/ 211/213/231/233/235/253/255
- Left license plate lamp (E19/1)
- Right license plate lamp (E19/2)

When the high beam or headlamp flasher is active, the SAM control unit sends a signal to CAN-B. The instrument cluster (A1) receives this signal and actuates the high beam indicator lamp (A1e3).
