GF82.10-D-2017HB Lamp Unit, Component Description

GF82.10-D-2017HB Lamp Unit, Component Description

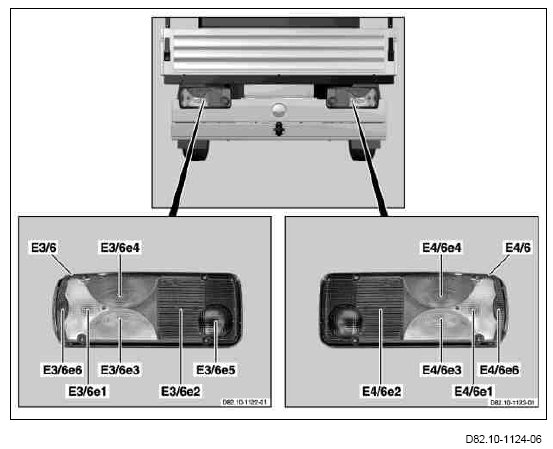

Rear







Shown except code (RH9) Tires 285/65 R16 Super Single, except code (ZG1) Engageable all-wheel drive, except code (ZG2) Permanent all-wheel drive, except code (ZG3) Gear reduction for all-wheel drive, except code (ZG4) Permanent all-wheel drive with gear reduction
E3/6 Left taillamp
E3/6e1 Turn signal lamp
E3/6e2 Taillamp
E3/6e3 Backup lamp
E3/6e4 Stop lamp
E3/6e5 Rear foglight
E3/6e6 Side-marker lamp
E4/6 Right taillamp
E4/6e1 Turn signal lamp
E4/6e2 Taillamp
E4/6e3 Backup lamp
E4/6e4 Stop lamp
E4/6e6 Side-marker lamp

Location
The left taillamp is mounted in the rear end on the left of the vehicle.
The right taillamp is mounted in the rear end on the right of the vehicle.

Task
- Illumination of the surroundings behind the vehicle during backup
- Indicating the direction of travel and hazard warning flashing
- Indicating the position of the vehicles during driving and while stopped
- Indicating brake application

In vehicles with one of the following codes, the rear fog lamp is located in the bumper as a left rear fog lamp (E45/1) or right rear fog lamp (E45/2):
- Code (RH9) Tires 285/65 R16 Super Single
- Code (ZG1) Engageable all-wheel drive
- Code (ZG2) Permanent all-wheel drive
- Code (ZG3) AWD gear reduction
- Code (ZG4) Permanent all-wheel drive with gear reduction
