GF82.10-D-2017HA Lamp Unit, Component Description

GF82.10-D-2017HA Lamp Unit, Component Description

- with CODE (LG1) Bi-xenon headlamps with cornering illumination

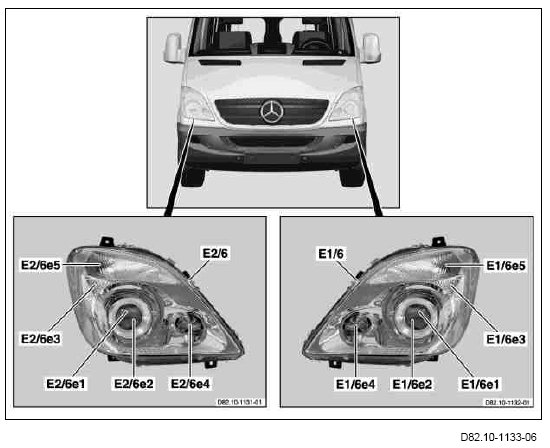

Vorn







E1/6 Left XENON lamp unit
E1/6e1 High beam
E1/6e2 Low beam
E1/6e3 Side lamp
E1/6e4 Cornering illumination
E1/6e5 Turn signal lamp
E2/6 Right XENON lamp unit
E2/6e1 High beam
E2/6e2 Low beam
E2/6e3 Side lamp
E2/6e4 Cornering illumination
E2/6e5 Turn signal lamp

Location
The left XENON lamp unit is installed on the left in the vehicle front section.
The right XENON lamp unit is installed on the right in the vehicle front section.

Task
- Illumination of the travel distance for various visibility conditions
- Indicating the direction of travel to left or right and hazard warning flashing
- Indicating the position of the vehicle during standstill
