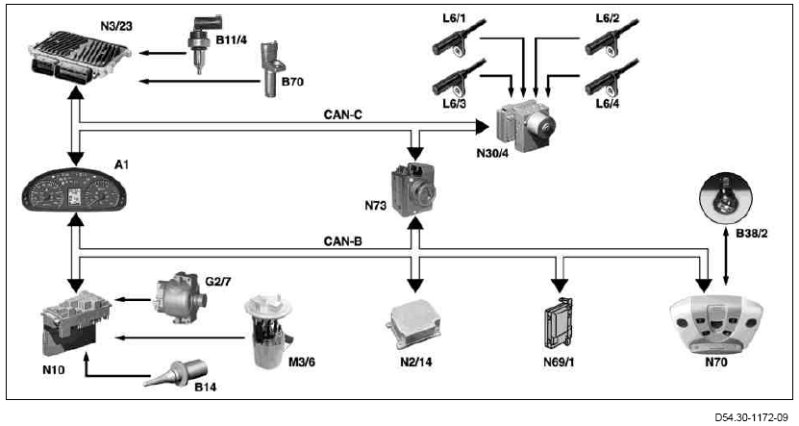

GF54.30-D-0002-06HL Instrument Cluster (IC), Networking of Components

GF54.30-D-0002-06HL Instrument Cluster (IC), Networking Of Components
- except CODE (JK3) High-end instrument cluster with speedometer in km







Shown with engine 272, except code (SH0) Windowbag for driver, except code (SH6) Thoraxbag for driver (in backrest), except code (SH7) Thoraxbag for driver and front passenger (in backrest) or except code (SH9) Windowbag for driver and front passenger
A1 Instrument cluster
B11/4 Coolant temperature sensor
B14 Outside air temperature sensor
B38/2 Rain/light sensor
B70 Crankshaft sensor
G2/7 Alternator
L6/1 Left front rpm sensor
L6/2 Right front rpm sensor
L6/3 Left rear rpm sensor
L6/4 right rear rpm sensor
M3/6 Fuel pump with fuel level sensor
N2/14 Lowline airbag control unit
N3/23 ME control unit
N10 SAM control unit
N30/4 ESP control unit
N69/1 Left front door control unit
N70 DBE control unit
N73 EIS [EZS] control unit
