GF54.30-D-0002-05HH Instrument Cluster (IC), Operating Information

GF54.30-D-0002-05HH Instrument Cluster (IC), Operating Information
- with CODE (JK3) High-end instrument cluster with speedometer in km







Schematic representation
A1e3 High beam indicator lamp
A1e6 Seat belt warning lamp
A1e9 Parking brake indicator lamp
A1e10 Left tern signal indicator lamp
A1e11 Parking brake indicator lamp
A1e12 Low beam indicator lamp
A1e13 Preglow indicator lamp
A1e14 ESP indicator lamp
A1e15 Traction warning indicator lamp
A1e16 ABS indicator lamp
A1e17 EOBD indicator lamp
A1e19 Brake fluid level warning lamp
A1e20 Right turn signal indicator lamp
A1e21 Brake fluid level warning lamp
A1e22 SRS warning lamp
A1e29 RDK indicator lamp
A1e37 LOW RANGE indicator lamp
A1e38 Fuel reserve indicator lamp
A1p1 Display
A1p2 Fuel level and reserve indicator
A1p5 Tachometer
A1p8 Speedometer
A1s1 Engine oil level button
A1s2 Reset button
A1s3 Plus button
A1s4 Minus button

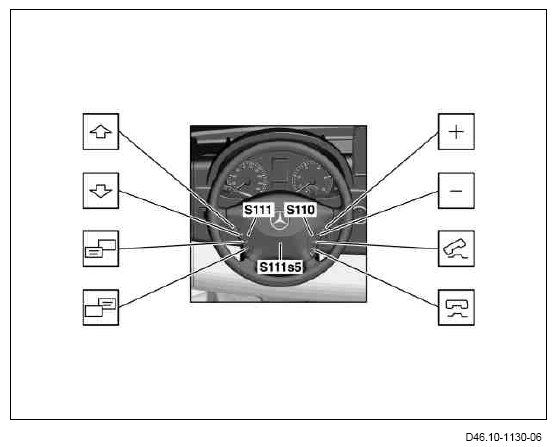

Multifunction steering wheel (MFL) with code (CL4) Multifunction steering wheel with trip computer controls
S110 Right multifunction steering wheel button group
S111 Left multifunction steering wheel button group
S111s5 Signaling horn button

Operation of display in instrument cluster (A1)
The displays in the instrument cluster display and the settings in the control system can be controlled via the buttons on the MFL. The standard display always appears when the instrument cluster is activated. The individual menus can be displayed by pressing the system selection button (S111s3) and the submenus can be displayed by pressing the scroll forward/back button (S111s1).
A submenu is selected using the + and - button (S110s1) on the MFL. The scroll forward/back button is used to select a function within a submenu. The actual settings are made using the + and - button on the MFL.
In addition, a number of functions can be operated using the following buttons:
- Engine oil level button
- Reset button
- Plus button
- Minus button

The display only shows systems and functions available in the particular vehicle. If a system is not present, it is "skipped" when the system selection button is pressed.

Confirm malfunction and warning messages
These messages are divided into 3 categories according to their priority. Category 2 and 3 messages shown in the display can be acknowledged by pressing the reset button in the instrument cluster and also using the system selection button or scroll forward/back button. Messages of category 1 (highest priority) cannot be acknowledged. Indicator or warning lamps that light up at the same time cannot be acknowledged.

Certain fault and warning messages are also accompanied by a chime.

Menus
The following menus can be selected using the system selection button in the display of the instrument cluster:
- Mode
- Audio
- Navigation
- Fault memory
- Settings
- Trip computer
- Telephone

Submenus
Submenu "Mode":
- Standard display with main odometer and trip odometer
- Display coolant temperature
- Display digital speedometer or outside temperature
- Query service date (active service system)
- Tire pressure monitor
- Inspect engine oil level

Submenu "Audio":
- Select radio station
- Operate CD player

Submenu "Navigation":
- Display destination-oriented navigation

Submenu "Fault memory":
- Display fault messages (if there are messages in memory)

Submenu "Settings":
- Reset to manufacturer default settings
- Instrument cluster settings
- Time/date settings
- Illumination settings
- Vehicle settings
- Stationary heater settings
- Comfort settings

Submenu "Trip computer":
- Consumption statistics since start
- Consumption statistics since last reset

Submenu "Telephone":
- Enter personal identification number (PIN)
- Search for name in telephone book
- Search for last dialed telephone number

Submenu "Vehicle settings"
Instrument cluster settings:
- Select unit for temperature
- Select unit for speedometer
- Select unit for odometer
- Select language
- Select display for status line
- Select unit for tire pressure

Time/date settings:
- Set hours (clock)
- Set minutes (clock)
- Clock display
- Set day (date)
- Set month (date)
- Set year (date)

Illumination settings:
- Set daytime running lamps
- Switch locator lighting on/off
- Switch OFF delay time for outside lamps on/off

Vehicle settings:
- Set permanent SPEEDTRONIC
- Set station selection
- Set windshield wiper sensitivity

Stationary heater settings:
- Program switch-on time
- Hours (set switch-on time)
- Minutes (set switch-on time)

Comfort settings:
- Set key dependency
