AZ83.30-D-0001-20A Prepare Additional Fan Unit For Retrofitting

AZ83.30-D-0001-20A Prepare Additional Fan Unit For Retrofitting
- MODEL 906.### #N as of 315764, 906.### #S as of 105757, 906.### #A as of 961268

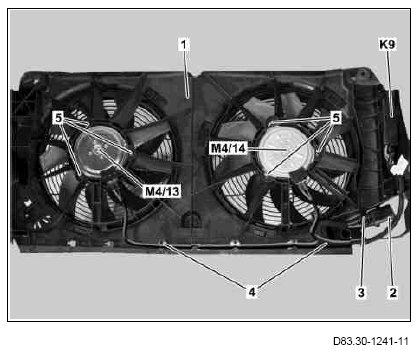

1 Insert air conditioner 1 additional fan (M4/13) and additional fan of air conditioner 2 (M4/14) into frame (1) of additional fan unit and secure in place using three screws (5) each.
2 Connect wiring harness (4) of additional fan unit to the additional fan relay (K9) and clip the additional fan relay into the frame (1).
3 Connect wiring harness (4) of additional fan unit to air conditioner 1 additional fan (M4/13) and the air conditioner 2 additional fan (M4/14).
4 Clip central connection (3) of wiring harness (4) into connector housing (2) on the frame.
5 Route wiring harness (4) as shown in picture onto the frame (1) and fasten in place.

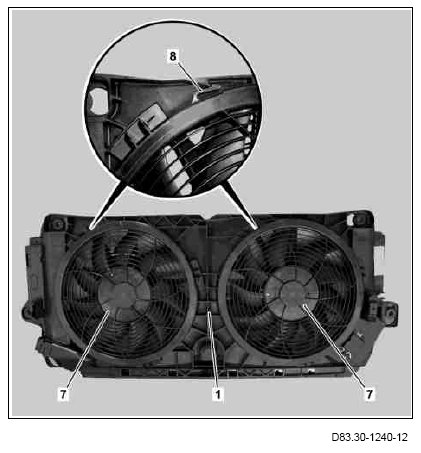

6 Position fan grille (7) with guides onto frame fixtures (1).
The guide with the retaining spring (8) must abut the top left fixture.

7 Keep turning fan grille (7) in clockwise direction until retaining spring latches into place on frame (1).
