AZ83.30-D-0001-18A Retrofit Additional Fan Unit and Cooling Control Loop For Steering Gear Oil

AZ83.30-D-0001-18A Retrofit Additional Fan Unit And Cooling Control Loop For Steering Gear Oil
- MODEL 906.### #N as of 315764, 906.### #S as of 105757, 906.### #A as of 961268

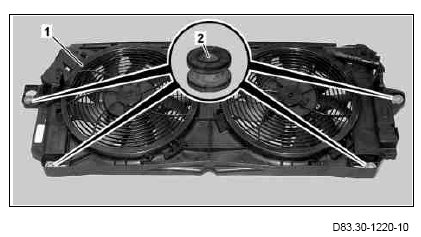

1 Insert the rubber mounts (2) into the frame of the additional fan unit (1).

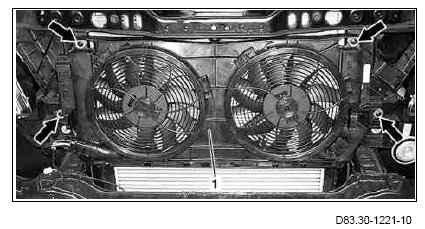

2 Fasten additional fan unit (1) using four screws (arrows) onto the radiator frame and bolt into place.

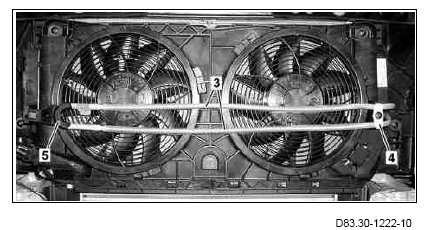

3 Position new cooling control loop for steering gear oil (3) onto right fixture (5) of additional fan unit and screw with the retaining bracket (4) onto the left fixture.







4 Connect feed and return hose (6) to cooling control loop for steering gear oil (3).
5 Remove clamps mounted on feed and return hose for removal of cooling control loop for steering gear oil.







6 Install air ducting (7) between the condenser and the left and right lamp unit.
