GF83.40-D-2188H Condenser, Component Description

GF83.40-D-2188H Condenser, Component Description

- except CODE (HH9) Regulated air conditioning (Tempmatic)

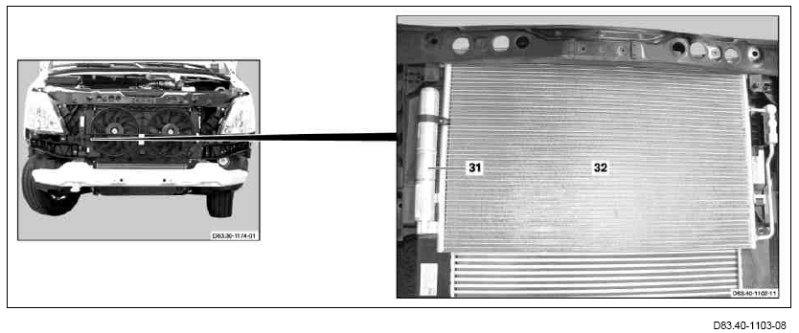

32 Front condenser

Location
The front condenser is located behind the air conditioner 1 additional fan (M4/13) and the air conditioner 2 additional fan (M4/14) in front of the radiator.

Task
The front condenser cools down the hot refrigerant vapor from approx. 75 °C to approx. 40 °C, whereby the refrigerant becomes liquid again (condenses).
