GF83.10-D-4145H Air Distribution Actuator Motor, Component Description

GF83.10-D-4145H Air Distribution Actuator Motor, Component Description

- except CODE (HH9) Regulated air conditioning (Tempmatic)

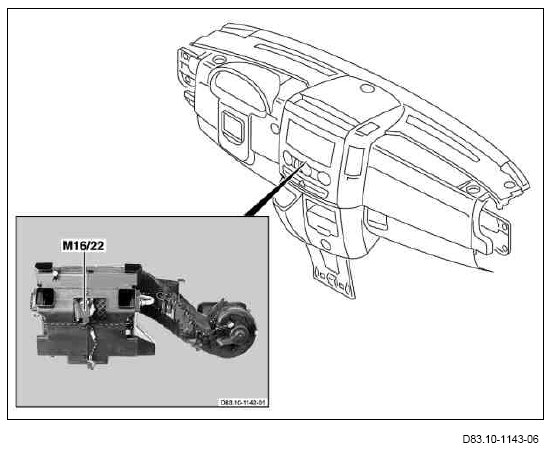

M16/22 Actuator motor for air distribution

Location
The actuator motor for air distribution is located centrally behind the AAC [KLA] control and operating unit (S98) on the front AC housing, which is located centrally behind the instrument panel.

Task
The actuator motor for air distribution moves the air distribution flaps according to the air distribution set using the air distribution switch (S98s8) integrated in the AAC [KLA] control and operating unit. This controls the distribution of the fresh air or recirculated air in the vehicle interior.
