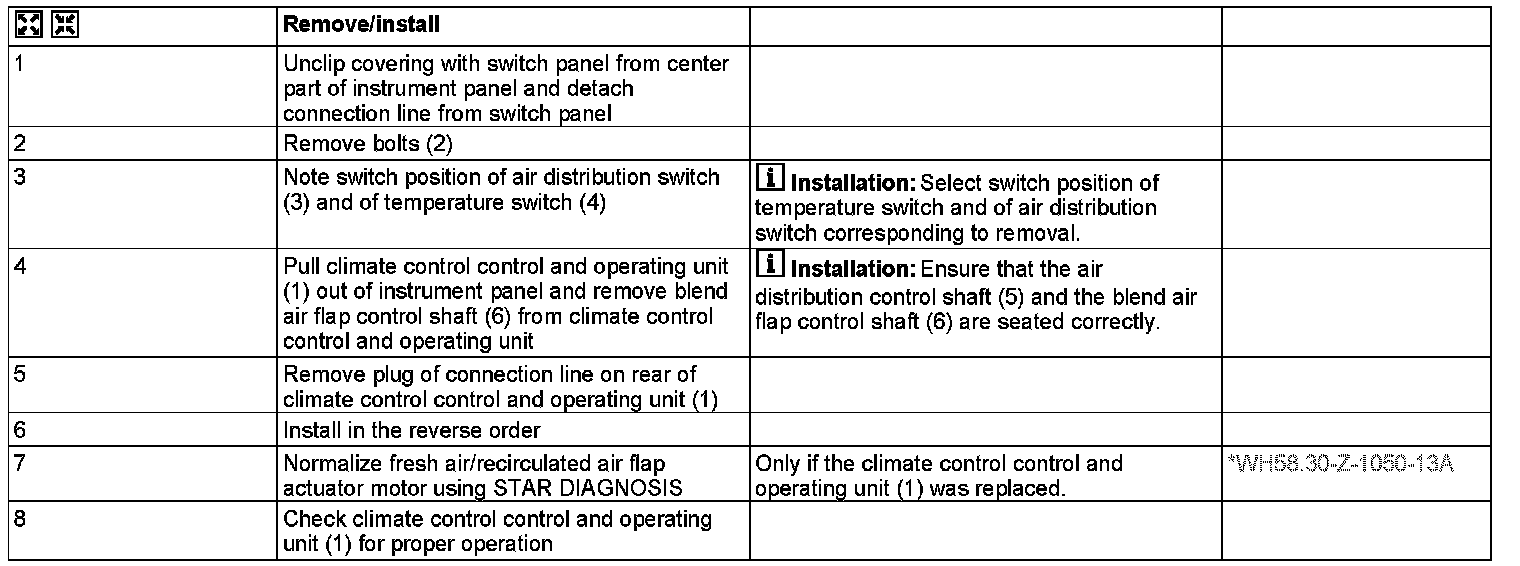

AR83.25-D-1124D Remove and Install Air Conditioning Pushbutton Control Unit

AR83.25-D-1124D Remove And Install Air Conditioning Pushbutton Control Unit
MODEL 906.1 /2 /6 /7
- except CODE (HH9) "Tempmatic" regulated air conditioning

MODEL 906.6 /7
- except CODE (HH9) "Tempmatic" regulated air conditioning
- except CODE (HH7) Additional air conditioning in rear

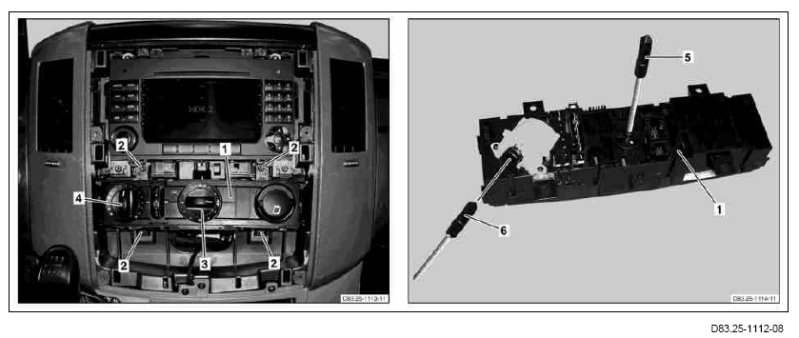

1 Air conditioning control and operating unit
2 Bolt
3 Air distribution switch
4 Temperature switch
5 Air distribution control shaft
6 Blend air flap control shaft
