AR83.25-D-1124C Remove and Install Air Conditioning Control and Operating Unit

AR83.25-D-1124C Remove And Install Air Conditioning Control And Operating Unit
MODEL 906.1 /2 /6 /7
- with CODE (HH9) "Tempmatic" regulated air conditioning

MODEL 906.6 /7
- with CODE (HH9) "Tempmatic" regulated air conditioning
- with CODE (HH7) Additional air conditioning in rear

MODEL 906.6 /7
- with CODE (H08) High-performance air conditioning

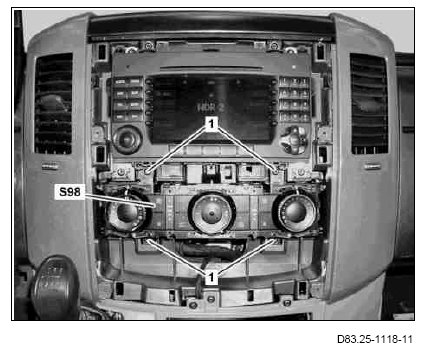

Climate control control and operating unit with code (HH7) Additional air conditioning in rear is shown
1 Bolts
S98 AAC [KLA] control and operating unit
