Procedures

AZ83.55-D-0001-02B Retrofit Refrigerant Compressor
- MODEL 906.### #N as of 315764, 906.### #S as of 105757, 906.### #A as of 961268

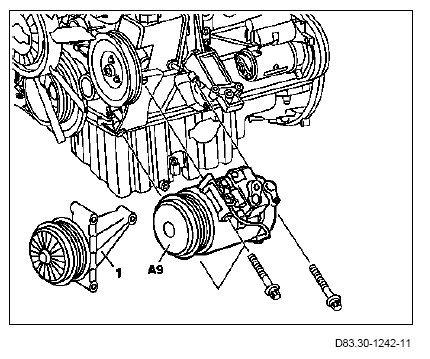

1 Remove poly-V belt guide pulley (1) from the crankcase.
2 Mount the refrigerant compressor (A9) onto the crankcase instead of the poly-V belt guide pulley (1) and then screw into place .

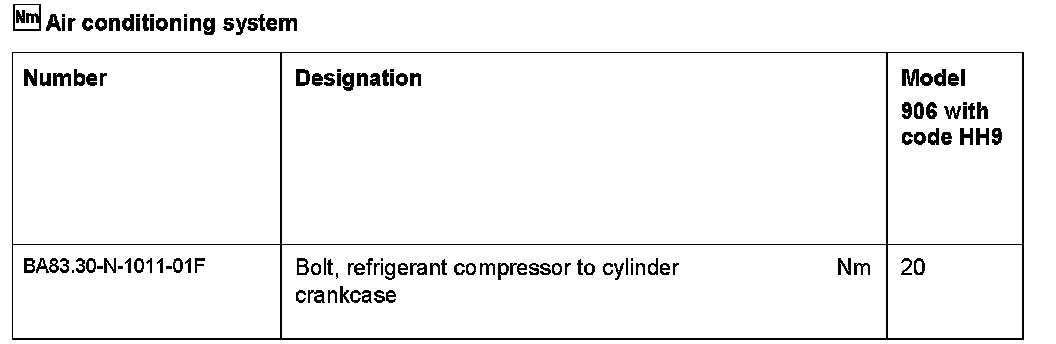

The refrigerant compressor (A9) must not be installed using the screws used for the poly-V belt guide pulley. Use new screws of identical length from the parts kit.
