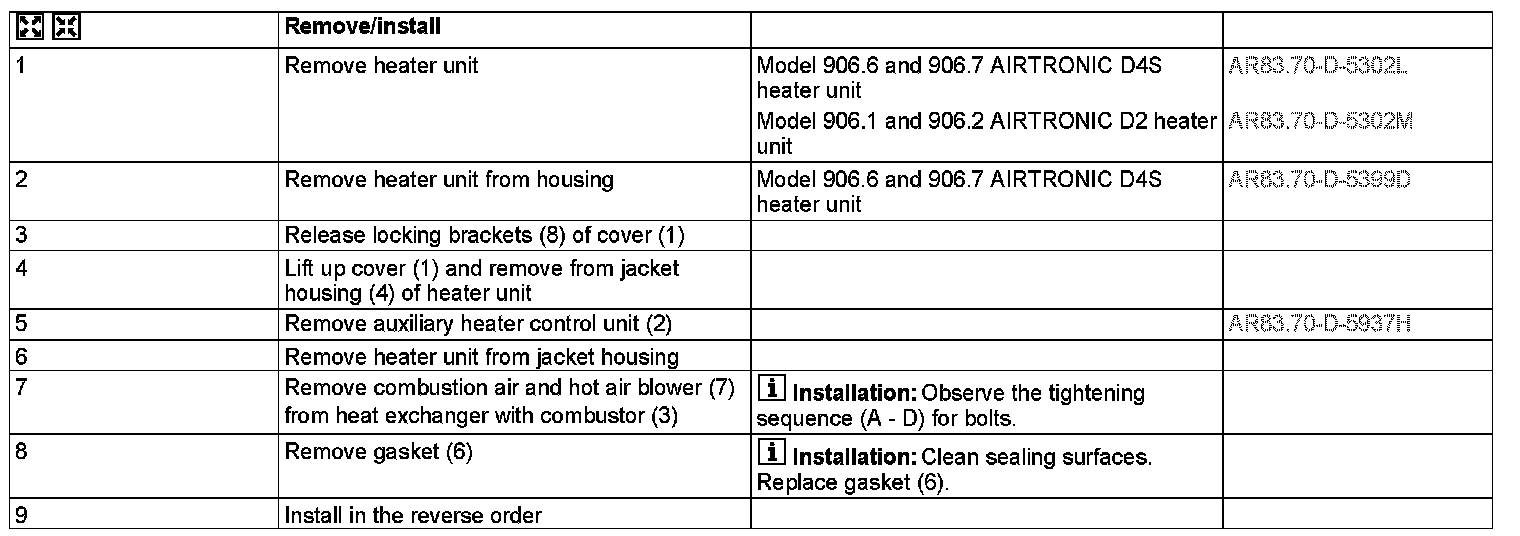

AR83.70-D-5807G Remove and Install Combustion and Heater Air Blower

AR83.70-D-5807G Remove And Install Combustion And Heater Air Blower

- with CODE (H11) Warm air auxiliary heater







1 Cover
2 Auxiliary heating control unit
3 Heat exchanger with combustor
4 Casing housing
5 Flange gasket
6 Seal
7 Combustion and heater air blower
8 Locking brackets
A - D Tightening sequence
