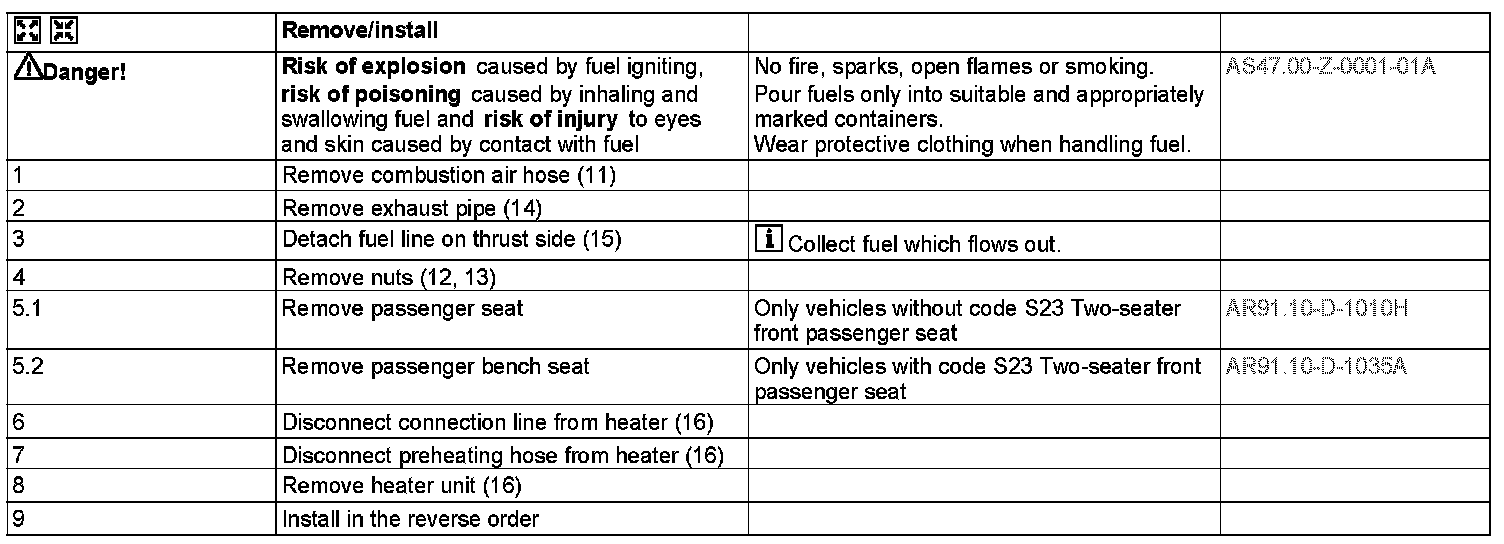

AR83.70-D-5302M Remove/Install Heater Unit

AR83.70-D-5302M Remove/Install Heater Unit

- with CODE (H11) Warm air auxiliary heater

Heater unit AIRTRONIC D2







Shown on model 906.1
11 Combustion air hose
12 Nuts
13 Nut
14 Exhaust pipe
15 Fuel line, thrust side
16 Heater unit
17 Front passenger bench seat
18 Outlet
