Air Duct: Service and Repair

AR83.25-D-1000-02E Remove Air Ducts







1 Turn instrument panel support together with instrument panel into installation position.

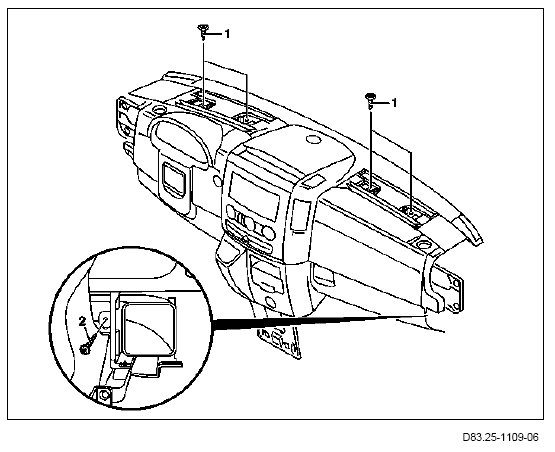

2 Remove bolts (1) from air ducts of windshield.
3 Remove bolts (2) from air ducts of side air outlets.
4 Pull out air ducts.
