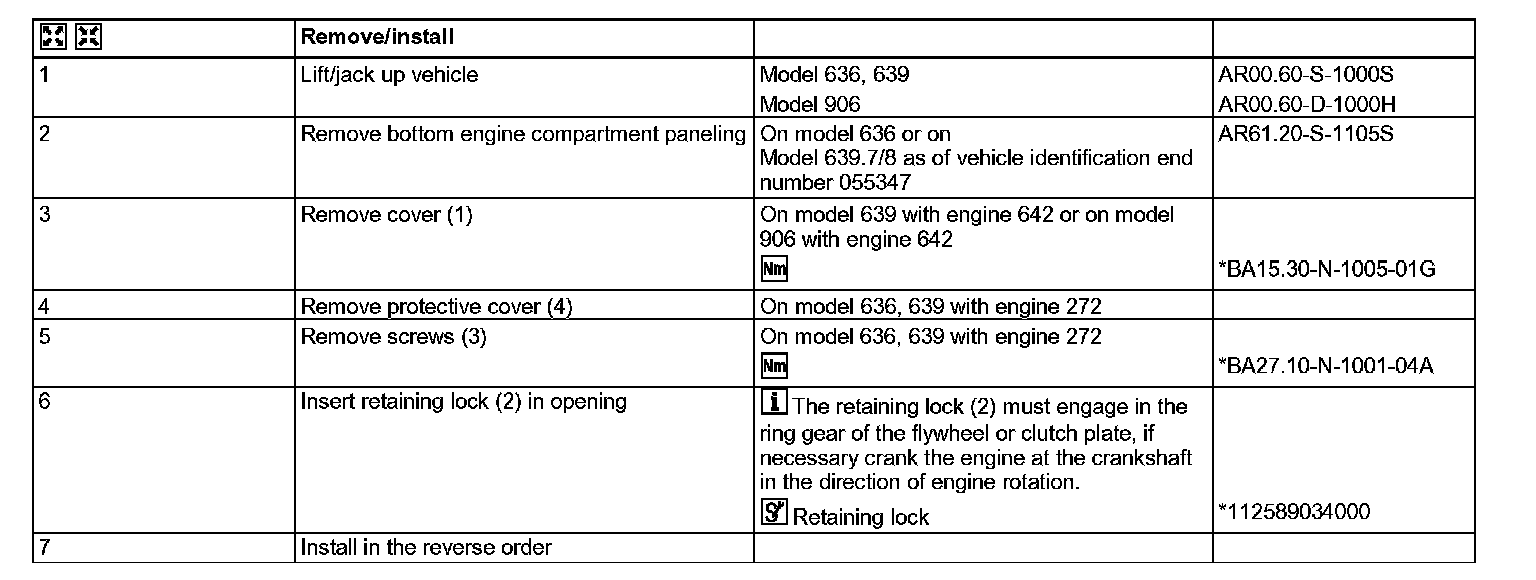

AR03.30-S-5000SE Remove/Install Retaining Lock For Crankshaft/Ring Gear

AR03.30-S-5000SE Remove/Install Retaining Lock For Crankshaft/Ring Gear








Engine 642 in model 639

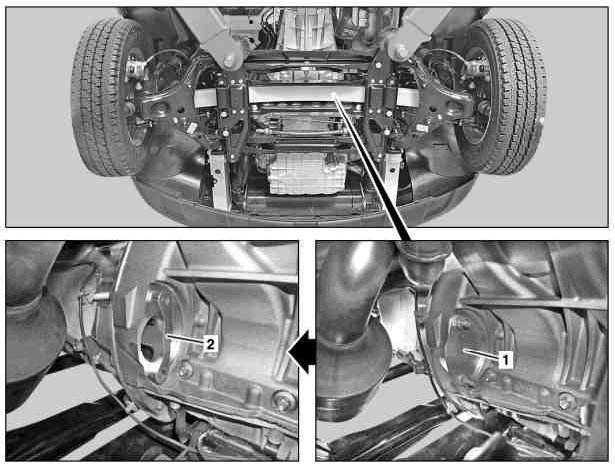

1 Cover
2 Retaining lock





Engine 642 in model 906

1 Cover
2 Retaining lock





Engine 272 in model 636 and model 639

3 Screw
4 Protective cover














112 589 03 40 00
Retaining lock
