AR01.10-D-2400-09SF Attach, Detach Engine Removal Fixture

AR01.10-D-2400-09SF Attach, Detach Engine Removal Fixture





906 589 01 62 00
Support plate

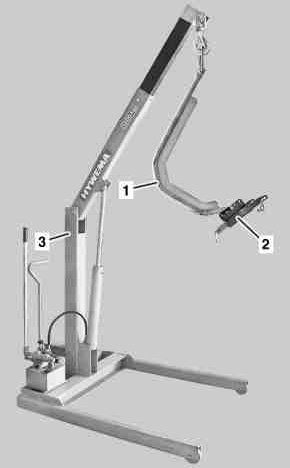

1 Hook in removal fixture for engine (1) with mounting plate (2) in the engine crane (3).

Mobile workshop crane
gotis://H_00.12_03.0
Engine removal fixture for cars and vans
gotis://A_01_08.1

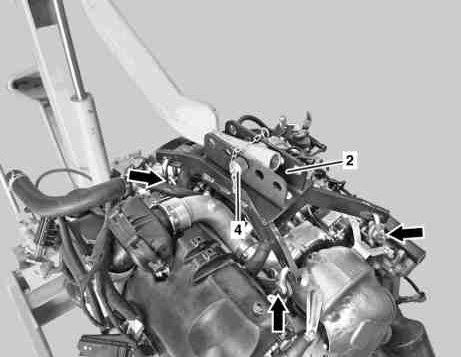

2 Position mounting plate (2) via the engine and hook into lifting eyes (arrows) on the engine.

Bolt (4) for the mounting plate (2) must be in the middle assembly position.

3 Remove in the reverse order.
