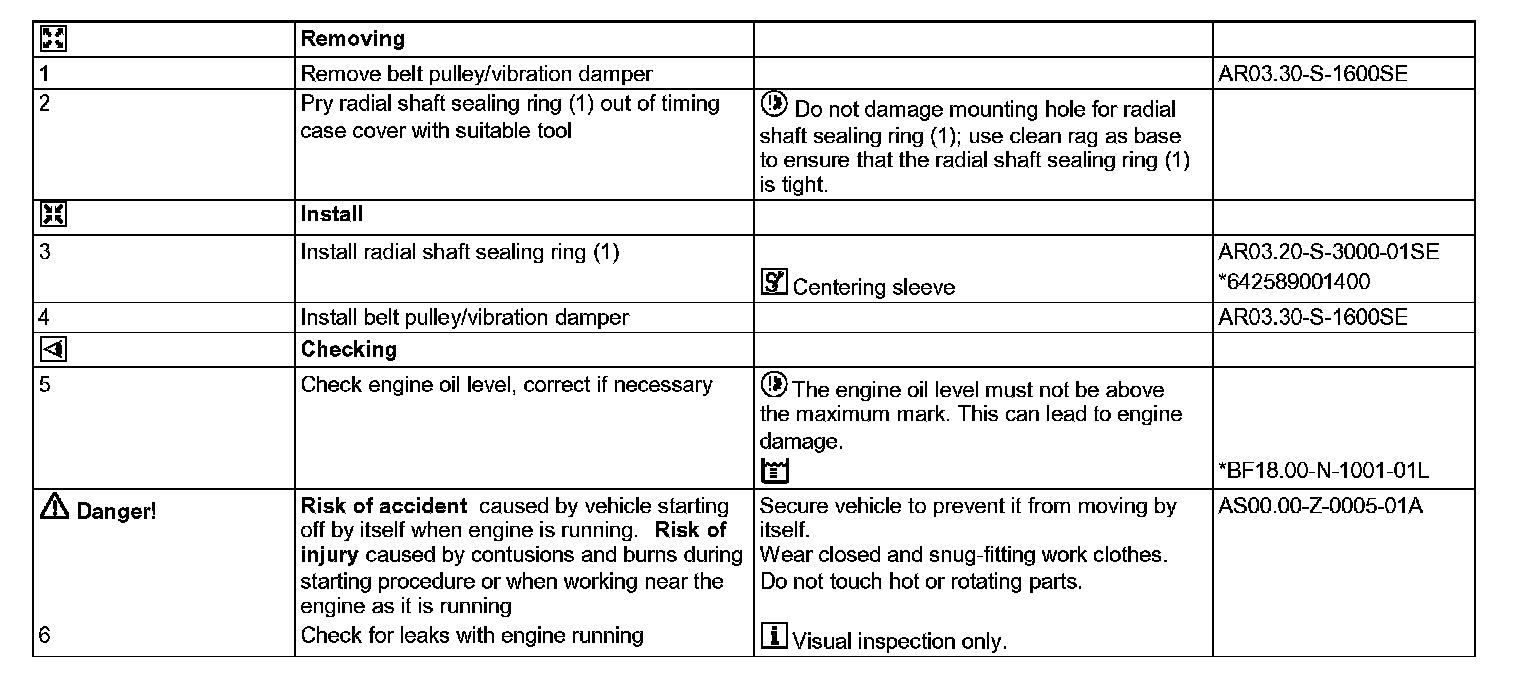

AR03.20-S-3000SE Replace Front Crankshaft Radial Sealing Ring




AR03.20-S-3000SE Replace Front Crankshaft Radial Sealing Ring







Illustrated on model 639

1 Radial shaft seal











642 589 00 14 00
Centering sleeve
