Oil Cooler: Service and Repair




AR18.30-S-6840SE Remove/Install Oil-water Heat Exchanger

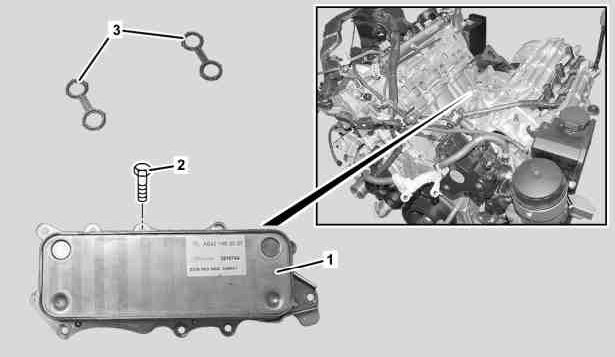

Shown on engine 642 in model 639

1 Oil/water heat exchanger
2 Screw
3 Seals
