Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

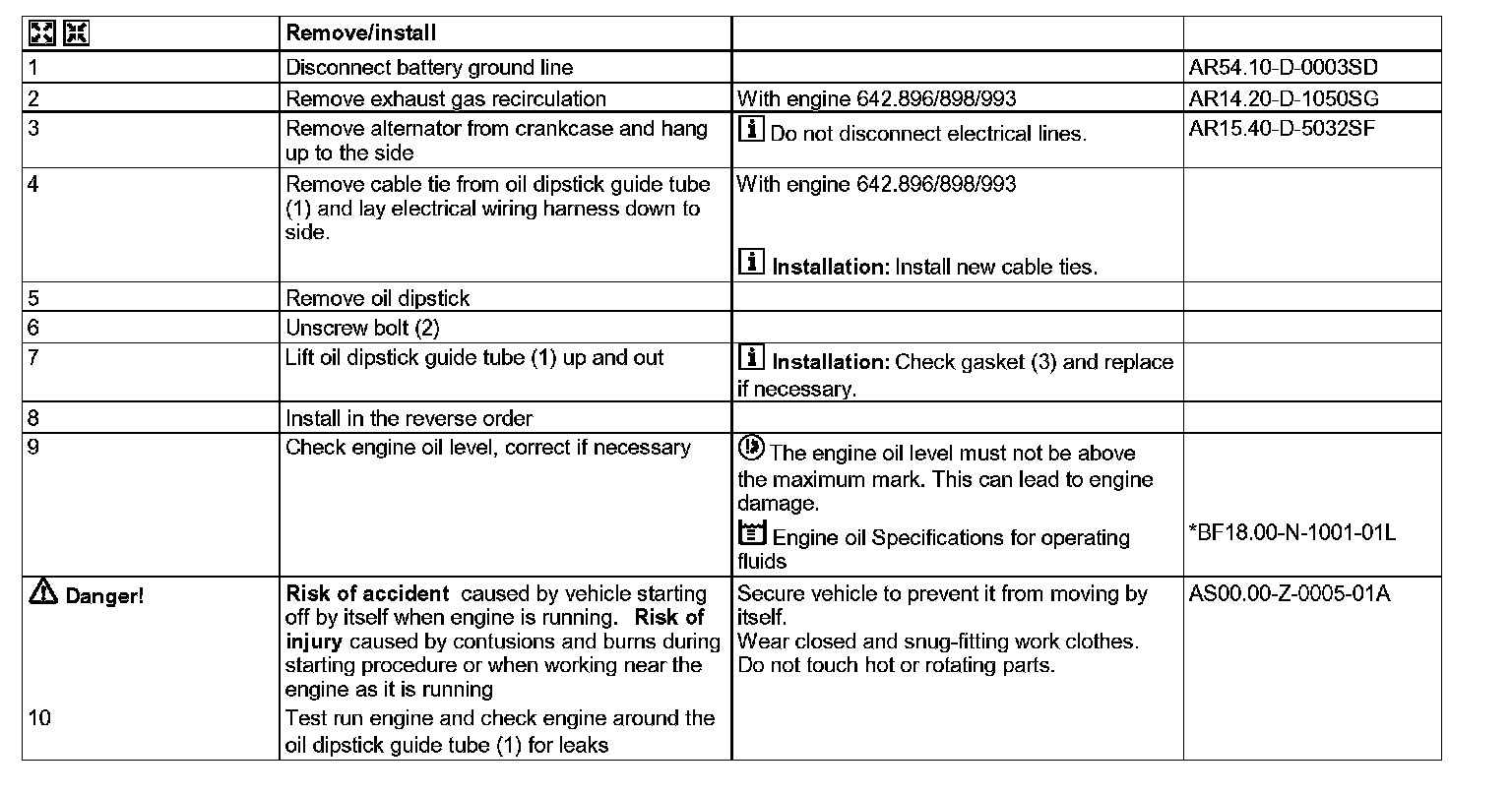

AR18.40-D-3510SF Remove/Install Oil Dipstick Guide Tube

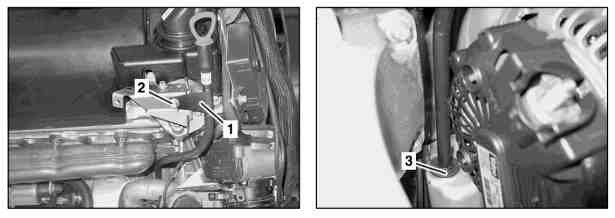

Shown on engine 642.992

1 Oil dipstick guide tube
2 Screw
3 Gasket
