Valve: Service and Repair

AR05.30-D-3511SG Remove/Install Valves

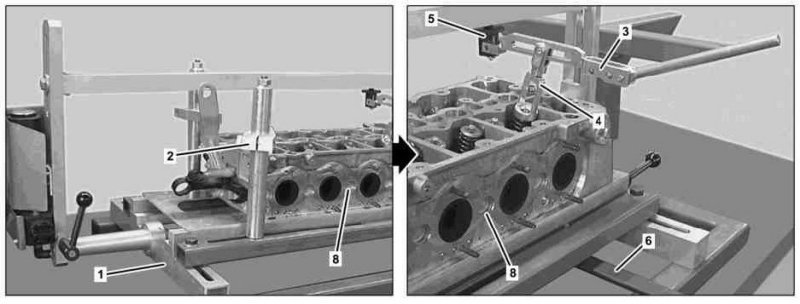

1 Assembly device
2 Counterholder
3 Assembly lever
4 Depressor
5 Sliding element
6 Lever
8 Cylinder head





4 Depressor
7 Magnetic pin
9 Valve
10 Valve keeper
11 Upper valve spring retainer
12 Valve spring
13 Valve stem seal
14 Lower valve spring retainer








111 589 25 61 00
Case for valve installation tools





271 589 00 59 00
Assembly tool





604 589 00 43 00
Drift





606 589 00 37 00
Pliers





640 589 00 61 00
Depressor
