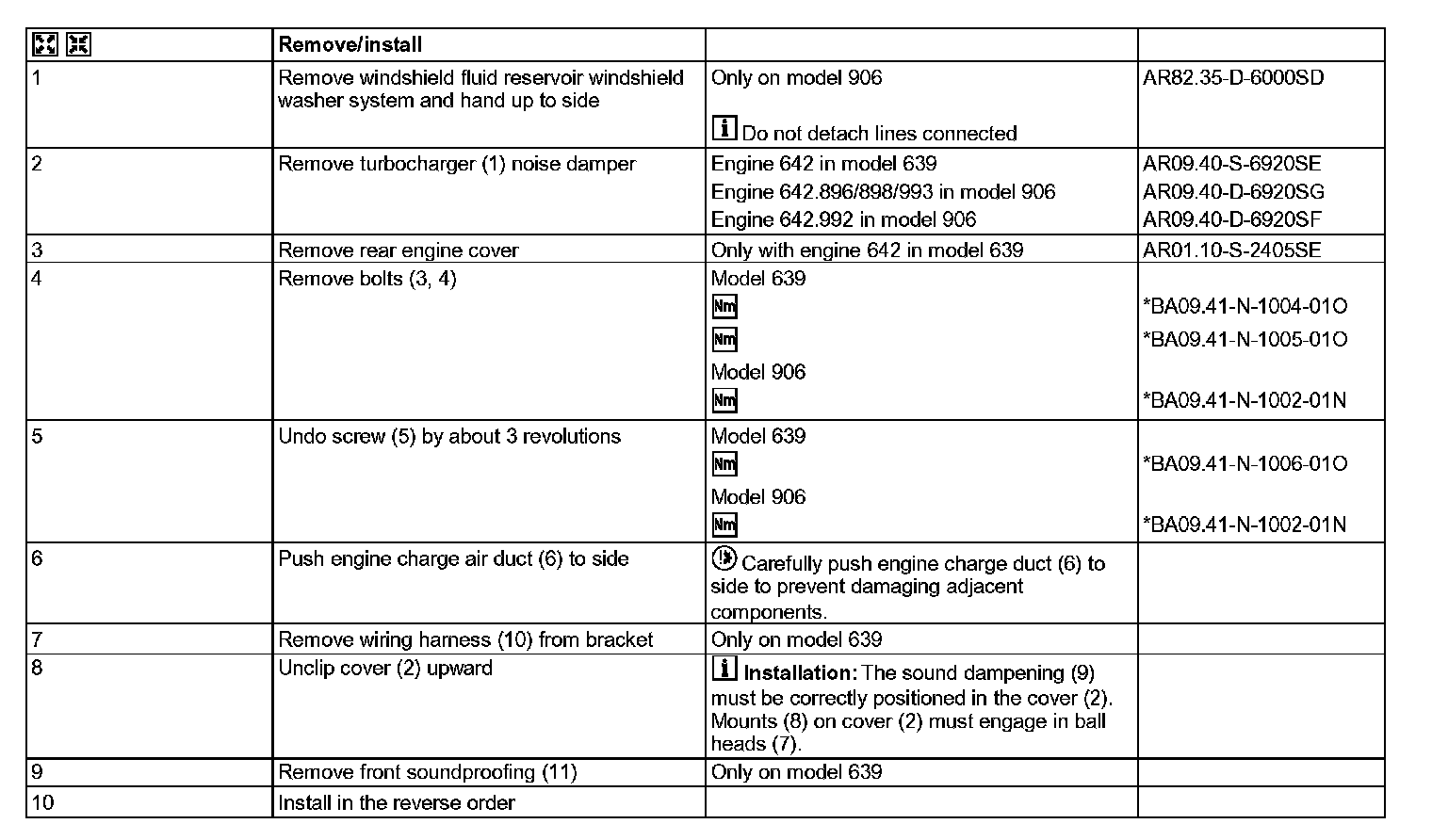

AR01.20-D-5015SG Remove/Install Cylinder Head Cover Trim Panel

AR01.20-D-5015SG Remove/Install Cylinder Head Cover Trim Panel

Cover on the left cylinder head cover







Shown on engine 642.992 in model 906

1 Turbocharger silencer
2 Cover
3 Screw
4 Screw
5 Screw
6 Engine charge air duct
7 Ball head
8 Support
9 Soundproofing





Shown on ENGINE 642.890 in MODEL 639

10 Wiring harness
11 Front soundproofing
