AR01.20-D-5013SF Remove/Install Left Cylinder Head Cover

AR01.20-D-5013SF Remove/Install Left Cylinder Head Cover

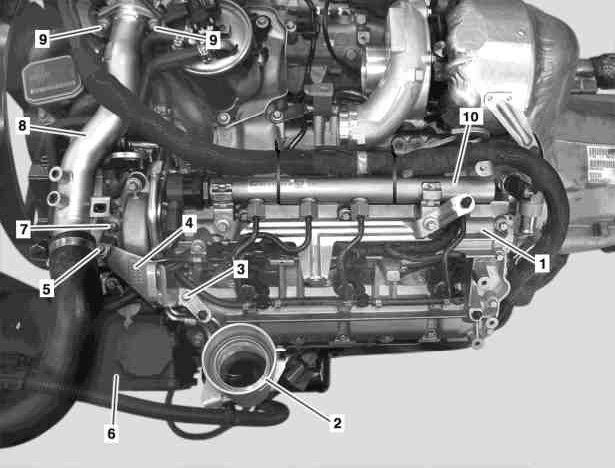

Shown on engine 642.992

1 Cylinder head cover
2 Engine charge air duct
3 Screw
4 Bracket
5 Screw
6 Steering reservoir
7 Screw
8 Coolant pipe (engine 642.992/993)
9 Bolt (engine (642.992/993)
10 Rail





Shown on engine 642.992

1 Cylinder head cover
11 Screw
12 Fuel pipe
13 High pressure line
14 Fuel hose
15 Fuel hose
16 Fuel filter
17 Screw
18 Engine wiring harness
19 High-pressure pump
32 Leak oil line

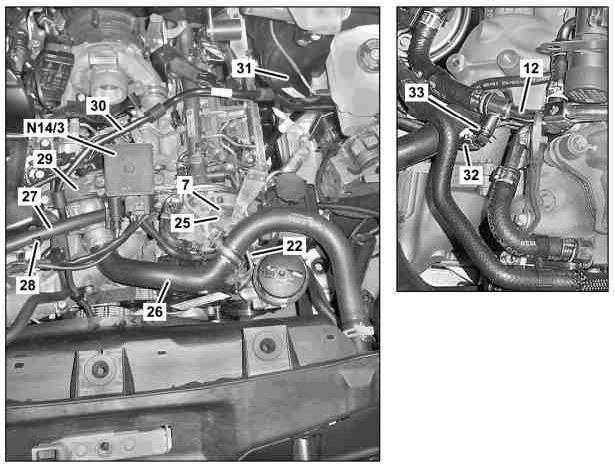

Shown on engine 642.896

7 Screw
12 Fuel pipe
22 Bracket
25 Bracket (engine (642.896/898)
26 Coolant hose
(engine 642.896/898)
27 Coolant hose
(engine 642.896/898)
28 Bracket (engine (642.896/898)
29 Bracket (engine (642.896/898)
30 Vacuum line
31 Brake booster
32 Leak oil line
33 Retainer (engine 642.896/898/993)

N14/3 Glow output stage

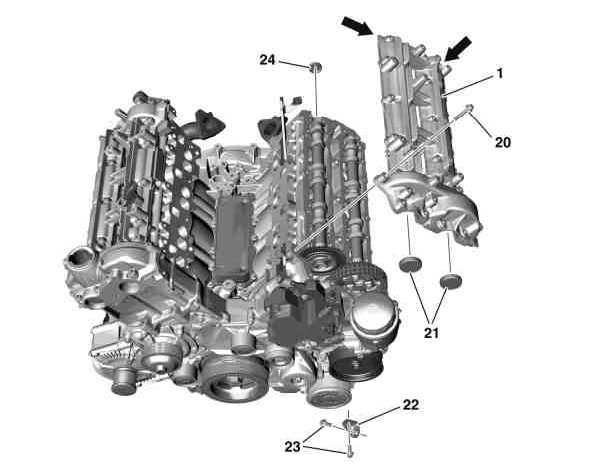

1 Cylinder head cover
20 Screw
21 Cover
22 Bracket
23 Bolts
24 Cover


























129 589 00 91 00
Set of stop plugs
