AR01.20-D-5012SF Remove/Install Right Cylinder Head Cover

AR01.20-D-5012SF Remove/Install Right Cylinder Head Cover






Shown on engine 642.992

1 Cylinder head cover
2 Bolts
(Engine 642.896/992/993)
3 Oil separator
(engine 642.896/992/993)
4 Rail
5 Electrical connector
6 Engine wiring harness
7 Vacuum pump
8 Drain pipe (code (KL5) Fuel filter with water separator)
9 Bolt (code (KL5) Fuel filter with water separator)
10 Bracket
11 Screw
12 Oil dipstick guide tube

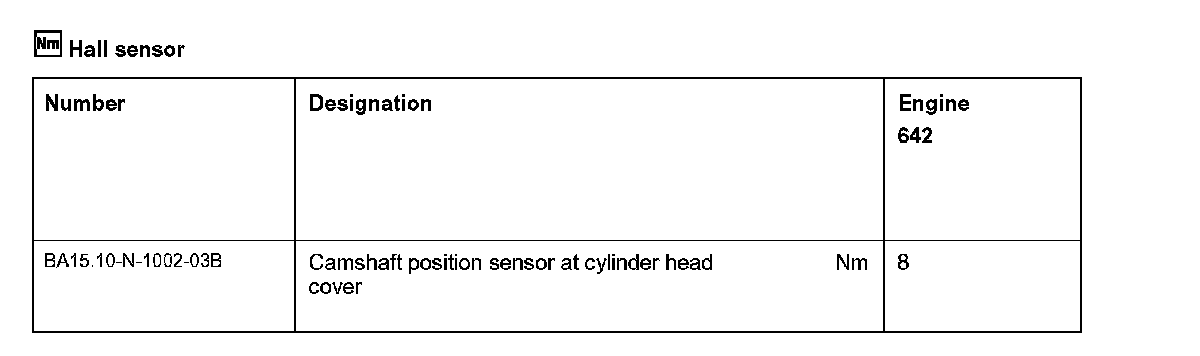

B6/20 Camshaft sensor (engine 642.992/993)
B6/24 Camshaft sensor (engine 642.896/898)





1 Cylinder head cover
13 Screw
14 Bolts
15 Connection fittings (engine 642.896/992/993)
16 Sealing ring
17 Radial shaft seal
18 Cylinder head
19 Cover
20 Oil separator (engine 642.898)
21 Bleed hose (engine 642.898)
