AR01.20-D-5014-03SF Bolt Tightening Procedure For Cylinder Head Cover

AR01.20-D-5014-03SF Bolt Tightening Procedure For Cylinder Head Cover

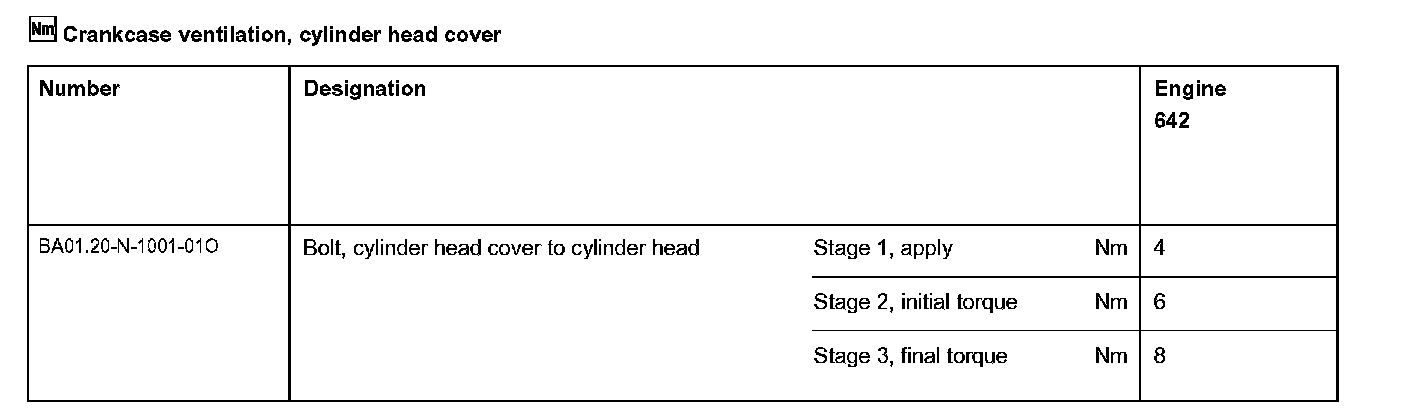

The bolts must be tightened according to the sequence specified in the diagram. Loosen bolts in reverse order. The bolts must not be retightened.





Right cylinder head cover

1 Tighten bolts (8 to 11) according to Stage 1.
2 Tighten bolts (1 to 30) to stage 2.
3 Tighten bolts (1 to 30) according to Stage 3.





Left cylinder head cover

4 Tighten bolts (8 to 11) according to Stage 1.
5 Tighten bolts (1 to 28) according to Stage 2.
6 Tighten bolts (1 to 28) according to Stage 3.
