AH01.30-N-1000-08SE Notes on Sealant Path For Cylinder Head Cover

AH01.30-N-1000-08SE Notes on Sealant Path For Cylinder Head Cover

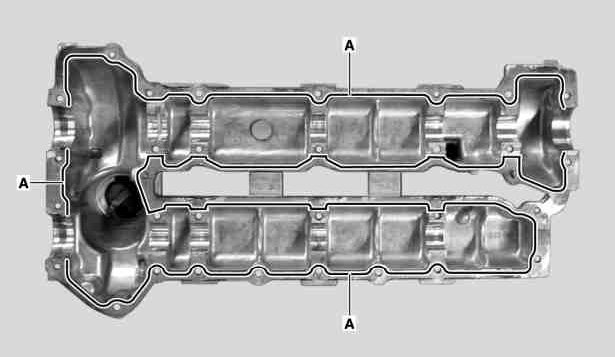

Shown on right-hand cylinder head cover

The sealing surfaces must be oil and grease-free otherwise leaks can occur.

The traced lines (A) identify the sealant path. Apply sealant evenly in the form of a bead (A) with a height and width of 1.5 mm (±0.5 mm) on the lines (A) of the cylinder head cover. The sealing compound must be applied within 10 min.
