AR01.30-D-5770SF Remove/Install the Cylinder Head

AR01.30-D-5770SF Remove/Install the Cylinder Head

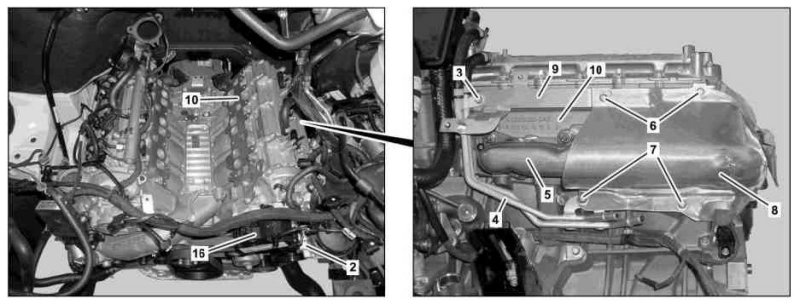

Shown on engine 642.992

2 Oil filter housing
3 Screw
4 Fuel lines
5 Exhaust manifold
6 Bolts
7 Bolts
8 Shield
9 Bracket
10 Left cylinder head
16 High-pressure pump

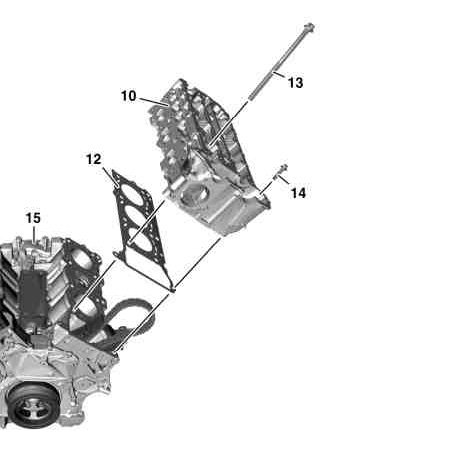

10 Left cylinder head
12 Cylinder head gasket
13 Cylinder head bolt
14 Cylinder head bolt
15 Cylinder crankcase

















605 589 00 33 00
Puller
