AR01.30-S-5800-03SE Check Cylinder Head Bolts

AR01.30-S-5800-03SE Check Cylinder Head Bolts

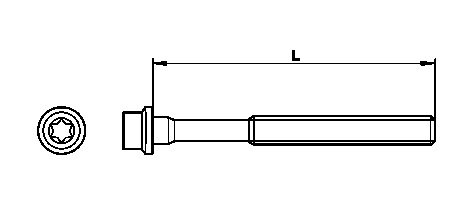

1 Measure length (L).

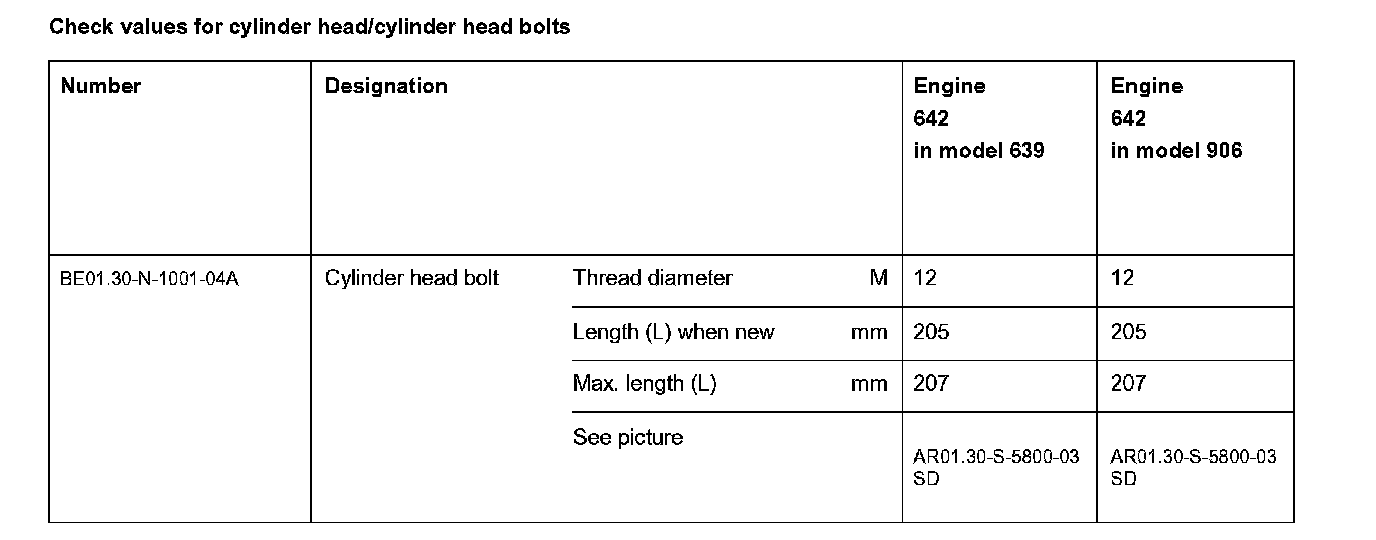

If the length (L) of cylinder head bolts exceeds the maximum permissible dimension then the cylinder head bolts must be replaced.
