Crankshaft Seal Retainer: Service and Repair

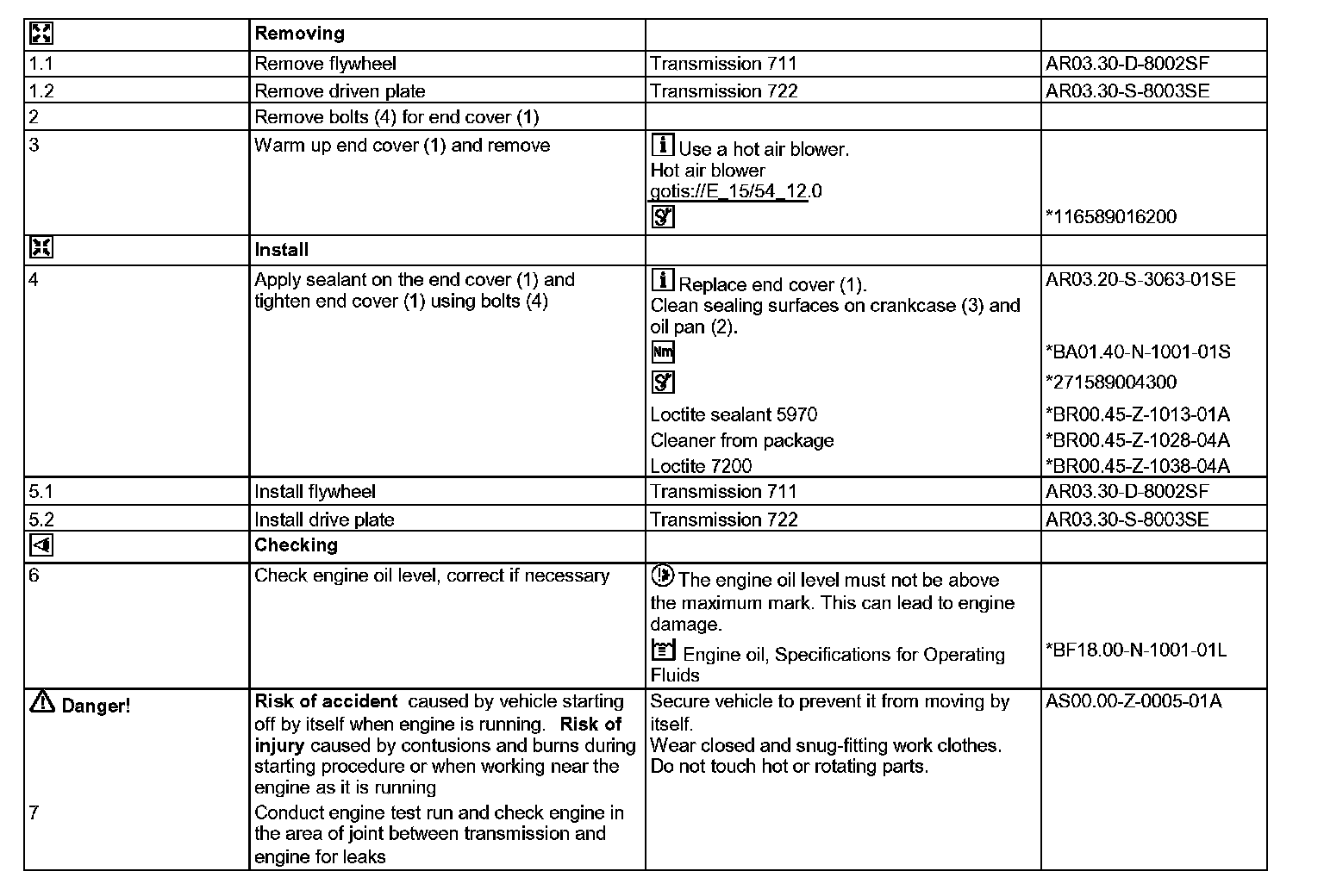

AR01.40-D-8920SF Remove/Install End Cover Together With Shaft Seal

ENGINES 642.898 in MODEL 906 with TRANSMISSION 722.683







1 End cover
2 Oil pan
3 Cylinder crankcase
4 Screw














116 589 01 62 00
Removal and installation tool





271 589 00 43 00
Insertion tool
