Home >> Mercedes Benz Truck >> 2010 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Crankshaft Main Bearing >> Specifications >> BA03.20-N-1000-01J Crankshaft

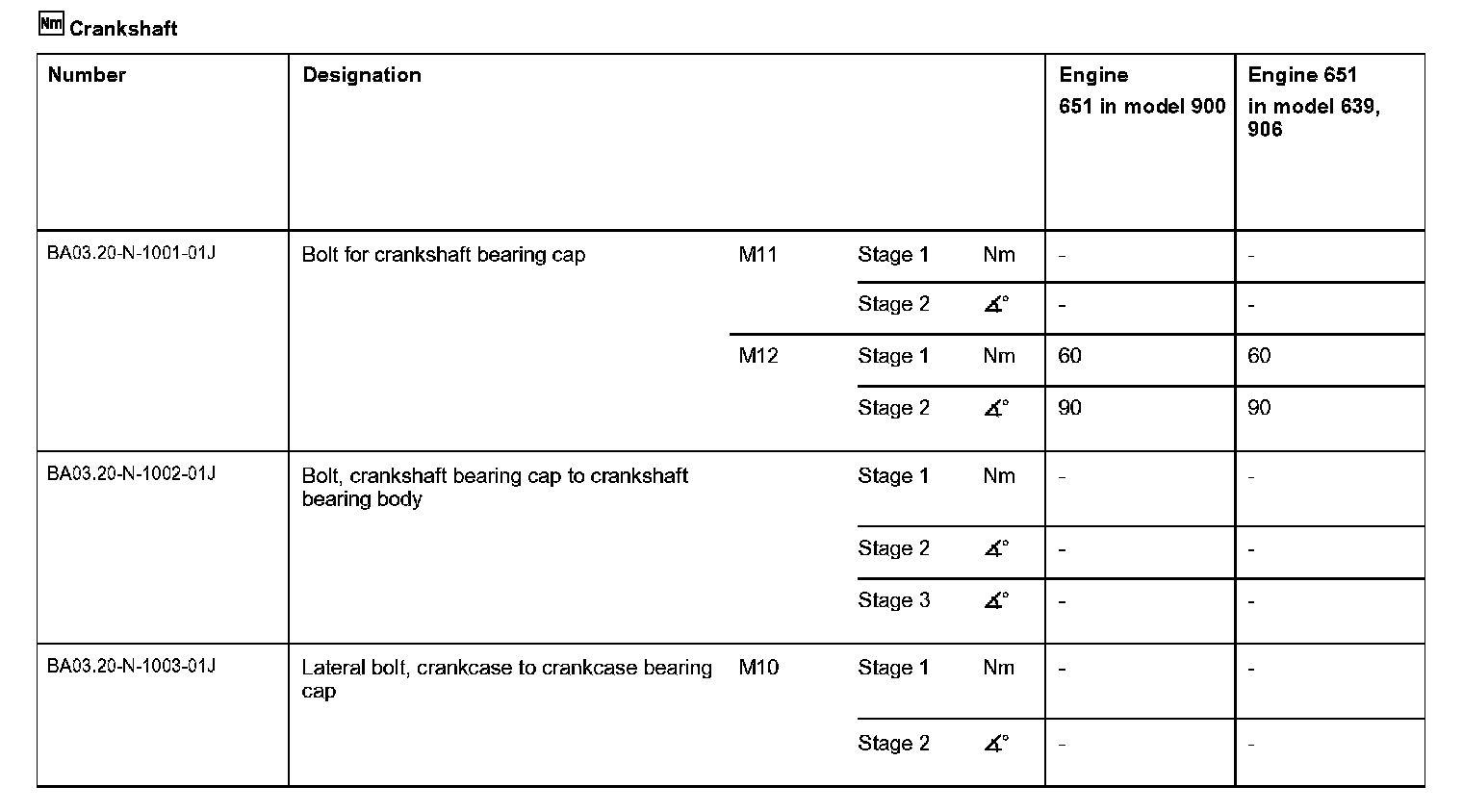

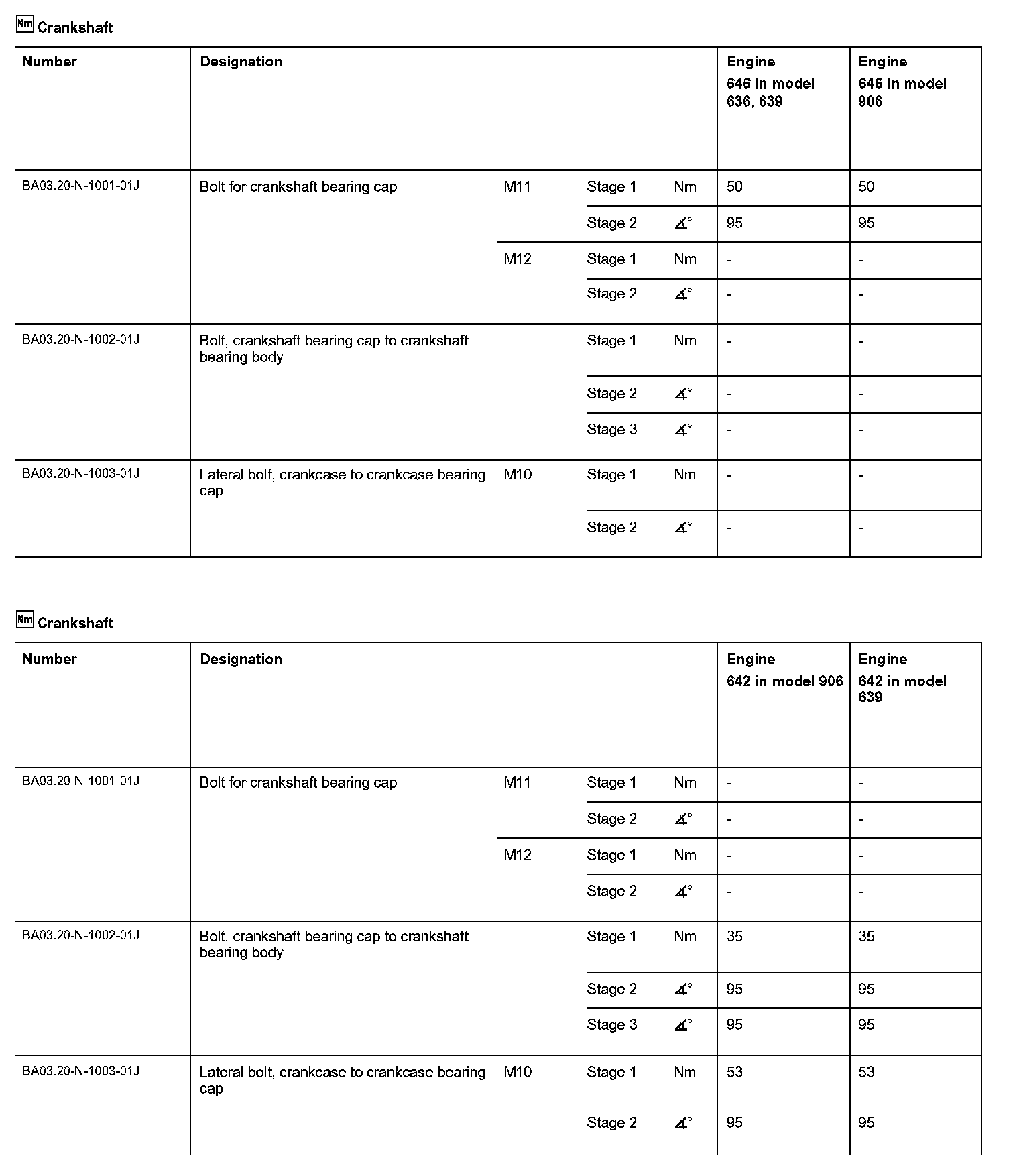

BA03.20-N-1000-01J Crankshaft



BA03.20-N-1000-01J Crankshaft
