Removal and Replacement

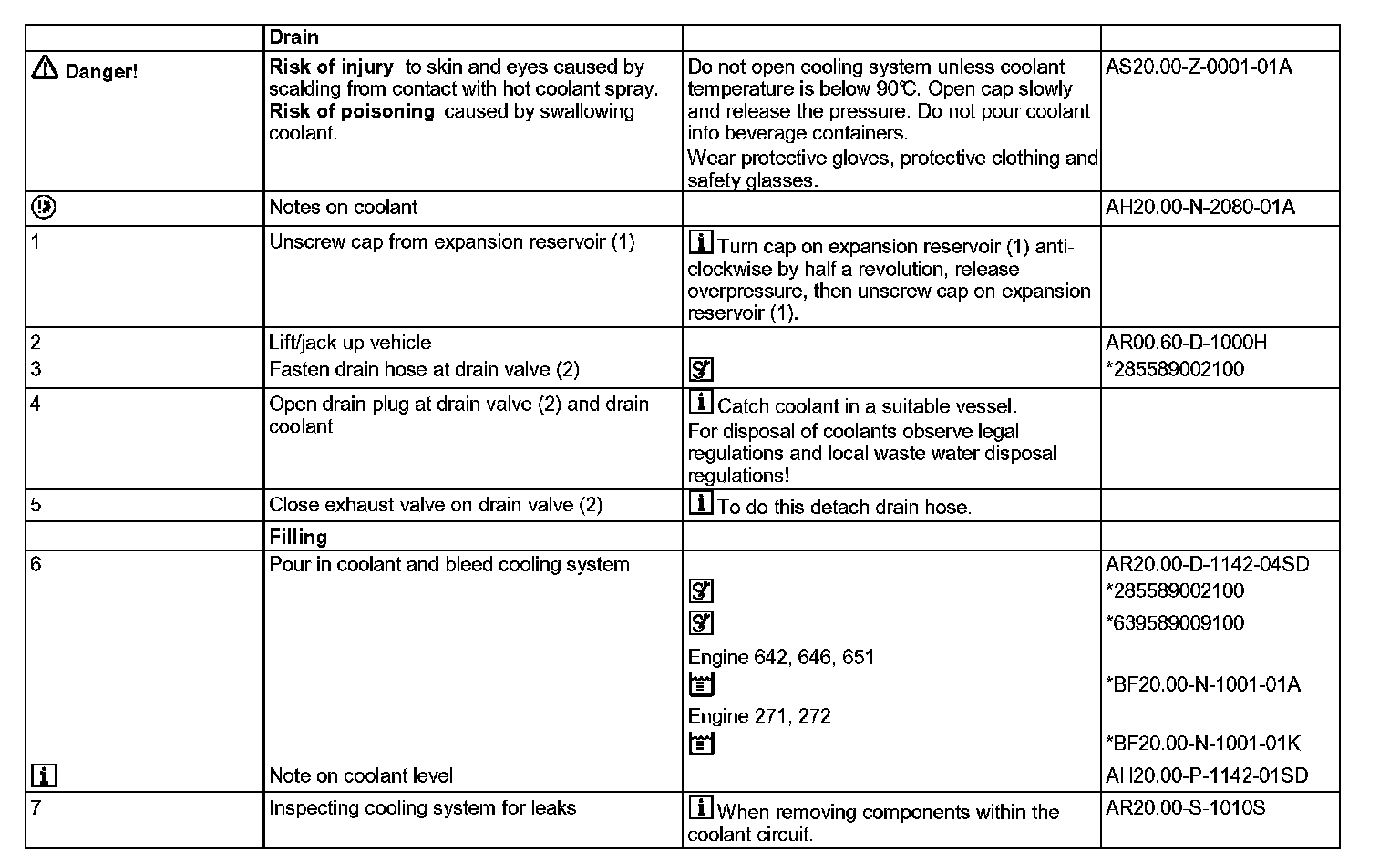

AR20.00-D-1140SD Drain Coolant, Fill Up and Check Cooling System For Leaks

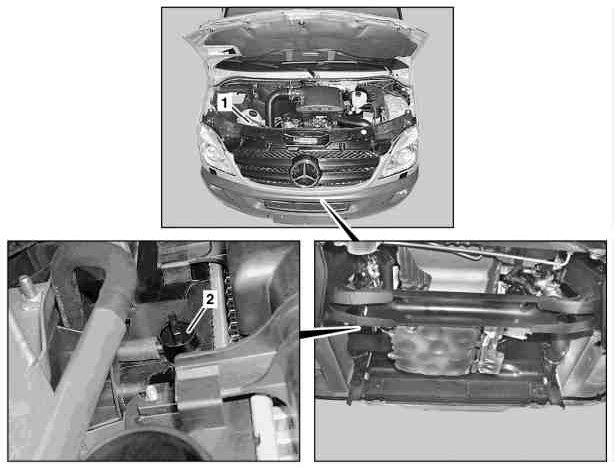

Shown on engine 646.985

1 Expansion reservoir
2 Drain valve











285 589 00 21 00
Vacuum-type cooling system filler





639 589 00 91 00
Tester cap
