Heater Core: Service and Repair

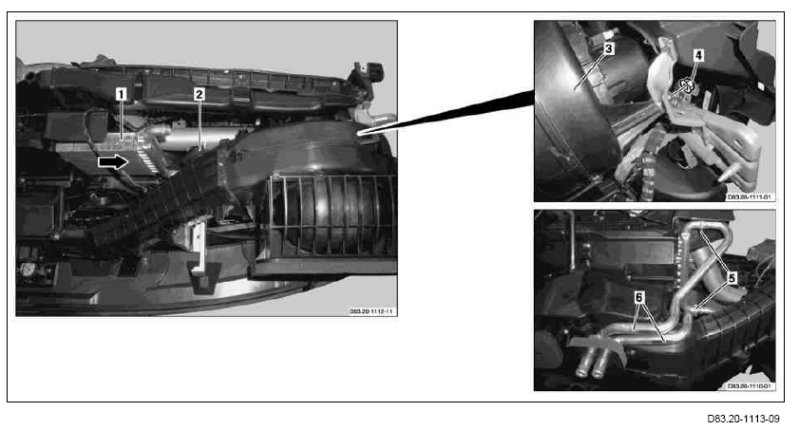

AR83.20-D-1100A Remove/Install Heat Exchanger

1 Heating system heat exchanger
2 Blower regulator
3 Blower housing
4 Nut
5 Clamps
6 Coolant lines
